Water Injection Oil Free

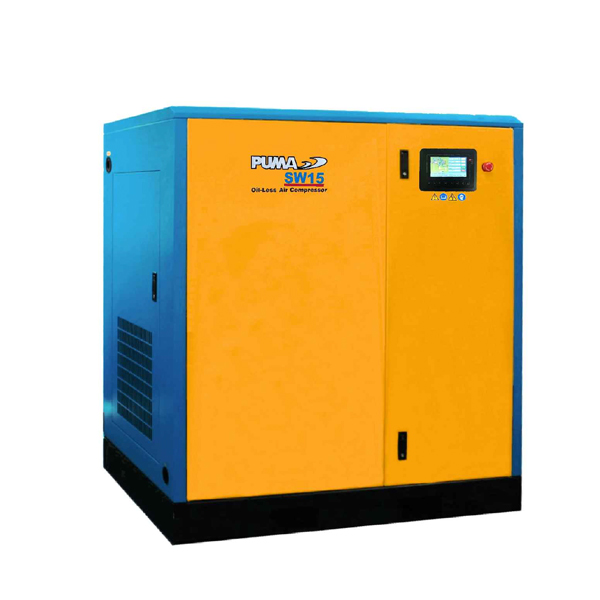

SW15

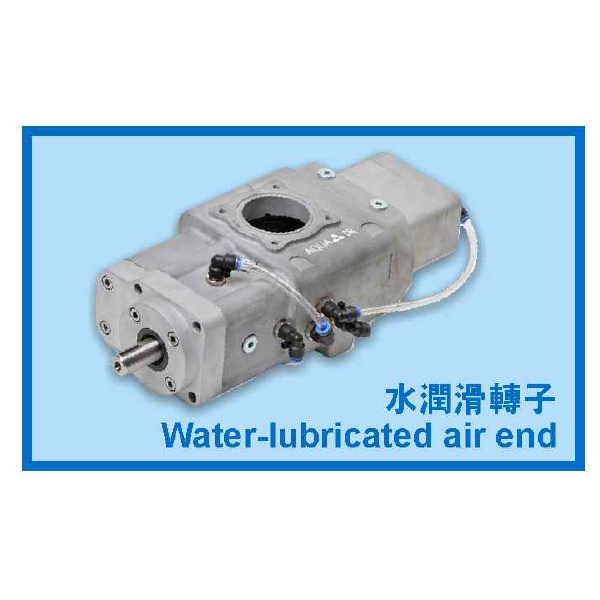

Water-lubricated air end

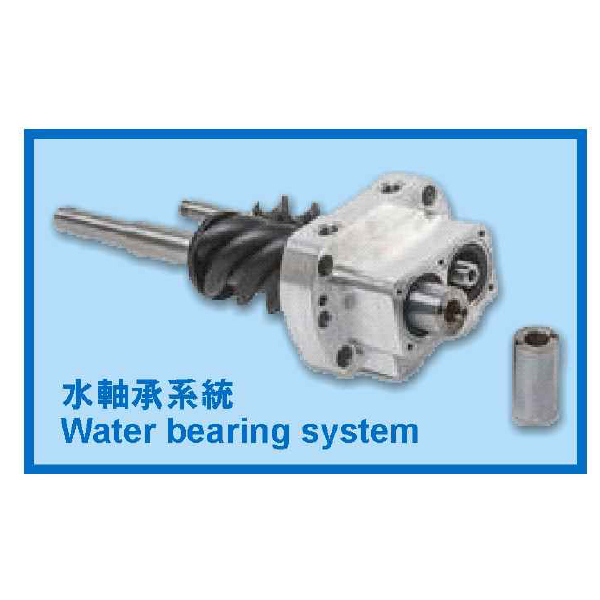

Water bearing system
Water Injection Oil Free
  • SW5
  • SW7
  • SW10
  • SW15
  • SW100
  • SW125
  • SW150
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/06-2WORK.pngviews/proimages/pd-en/title/03-3AIR-M2-CFM.pngviews/proimages/pd-en/title/16Cooling.pngviews/proimages/pd-en/title/10cm.pngviews/proimages/pd-en/title/09-2kg.png
SW5 5 4 8 0.55 I 19.42 Air 110x100x140 255
SW5 5  4  10 0.48 / 16.95
SW7 7.5 5.5 8 0.81 / 28.60 Air 110x100x140 265
SW7  7.5  5.5  10 0.71 / 25.07
SW10 10 7.5 8 1.12 / 39.56 Air 110x100x140 290
SW10  10  7.5  10 1.02 / 36.02
SW15 15 11 8 1.71 / 60.39 Air 110x100x140 320
SW15  15  11  10 1.39 / 49.09
SW100 100 75 8 11.7 / 413.24 Water 245x140x160 2000
SW100 100  75  10 10.3 / 363.79
SW125 125 90 8 14.1 / 498.01 Water 245x140x160 2250
SW125  125 90  10 12.3 / 434.43
SW150 150 110 8 17.3 / 611.03 Water 260x150x160 2500
SW150 150  110  10 15.1 / 533.33

Advantages

  • Water-lubricated screw compressor delivers 100% oil-free compressed air.
  • Die to patented design, the bearing has longer service.
  • Water-lubricated isothermal compression result in higher efficiency.
  • Low operating cost with water circulation.
  • Low maintenance cost because no oil filter, no oil/air separator.
  • Low speed, low noise, low vibration, without transmission gears.
  • No oil in the system hence easy treatment for compressed air.
  • Suitable for long full load operation due to low operating temperature.
  • Max. Working Pressure : 15kg/cm²
