Two Stage Belt Drive Series

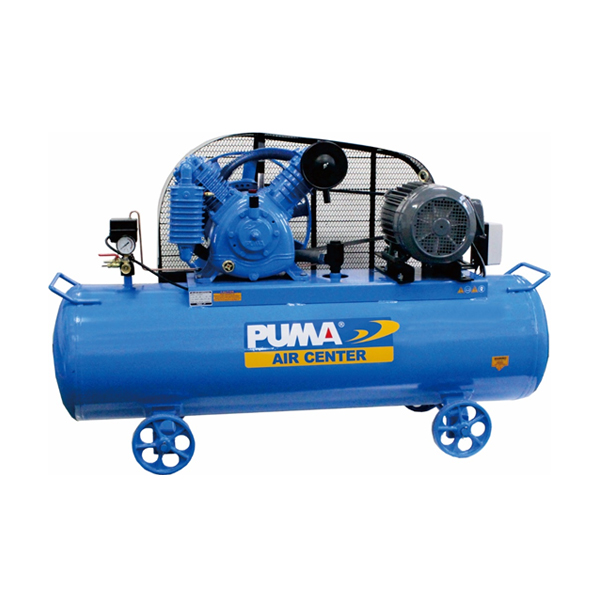

GT7300A
Two Stage Belt Drive Series
  • GT3160
  • GT5250
  • GT7300A
  • GT10300
  • GT15300
  • GT20300
  • GT30500
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/03-4AIR-CFM-60HZ.pngviews/proimages/pd-en/title/04-2MAX-RPM-60HZ.pngviews/proimages/pd-en/title/05NO.pngviews/proimages/pd-en/title/06WORK.pngviews/proimages/pd-en/title/07MAX.pngviews/proimages/pd-en/title/08AIR-Gal.pngviews/proimages/pd-en/title/09Lbs.pngviews/proimages/pd-en/title/10cm.pngviews/proimages/pd-en/title/11Old-Model.png
GT3160 3.0/ 2.20 300/ 10.5 260/ 9.2 1010/ 850 2 12/175 16/230 155/ 40 170/ 374 155x 58x106 GT30160
GT5250 5.0/ 3.75 560/ 20.0 485/17.1 960/ 800 3 12/175 16/230 228/ 60 261/ 574 160x70x115 GT50250
GT7300A 7.5 / 5.60 730/ 26.0 630/22.2 1180/1000 2 12/175 16/230 285/ 75 332/ 730 191x76x121 GT75300
GT10300 10.0 / 7.50 1070/38.0 940/33.2 870/ 750 3 12/175 16/230 285/ 75 364/ 800 171x76x121 GT100300
GT15300 15.0/11.20 1470/ 51.9 1470 / 51.9 820/ 820 4 12/175 16/230 285/ 75 505/1110 191x76x142 GT150300
GT20300 20.0/15.00 1980/ 70.0 1670 / 59.0 870/ 740 3 12/175 16/230 285/ 75 530/1166 191x76x142 GT200300
GT30500 30.0 /22.00 3000/106.0 2530 / 89.3 680/ 580 4 12/175 16/230 475/125 651/1432 201x84x144 GT300500

Semi-Auto type is to add "U" in no. eg. GUT3160 is semi-auto.

Tank cap. is optional at customers request.

A：0.5HP

Features:

Special high pressure design, safety, sturdy structure for durability. Availability of special auxiliary cylinder can further enhance compression efficiency.

Usage:

Suitable for use in factories, auto maintenance plant, tire stores and special high pressure supply system.
