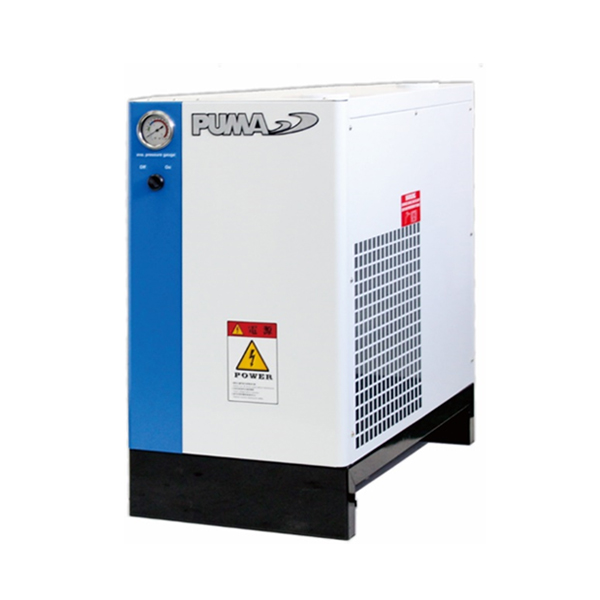

Refrigerated Air Dryer
  • 05NA
  • 10NA
  • 15NA
  • 20NA
  • 30NA
  • 50NA
  • 75NA
  • 100NA
  • 150NA
  • 200NA
  • 250NA
  • 300NA
  • 400NA
  • 05HA
  • 10HA
  • 15HA
  • 20HA
  • 30HA
  • 50HA
  • 75HA
  • 100HA
  • 150HA
  • 200HA
  • 250HA
  • 300HA
  • 400HA
Check the item No. you interested to view their specification

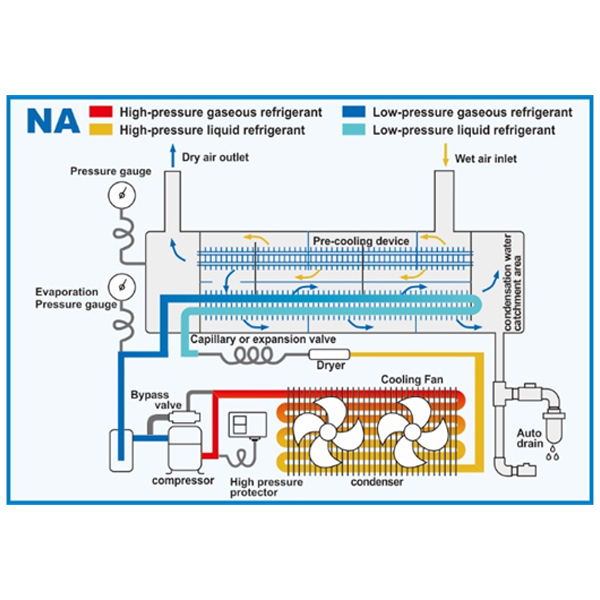

NA Series High Efficiency and Low Pressure Loss

views/proimages/pd-en/title/14Fan.png 05NA 10NA 15NA 20NA 30NA 50NA 75NA 100NA 150NA 200NA 250NA 300NA 400NA
views/proimages/pd-en/title/15Arrow-air.pngNM³/min 0.6 1.2 1.7 2.5 3.8 6.8 9 13 18 23 28 34 45
SCFM 21 43 60 88 135 240 300 459 600 812 953 1130 1588
Air Compressor(HP) 1-5 7.5- 10 15 20 30 30-50 50-60 75 100 150 200 250 300
Inlet Temperature NA: 45°C
Ambient Temperature 38°C
Dew Point 2-5°C (7Kg/cm²)
Working Pressure 7Kg/cm² Max. 10Kg /cm²
Refrigerant R134a R-22
Refrigerate Compressor
(HP)
1/5 1/3 1/2 3/4   1 1-1/2 2 3 4 5 6 7.5 8
Power 220 single phase  220 / 380 / 440V 3phase
Connector Pipe Size 1/2" 3/4" 1" 1-1 /2" 2" 2 - 1/2" 3" 3"F 4"F 4"F 4"F 5"F
Dimensions
(mm)
H 390 600 600 650 750 800 1000 1000 1150 1300 1300 1400 1500
W 350 350 350 350 400 500 700 700 700 700 700 2000 2000
D 400 640 640 770 920 920 1270 1270 1515 1665 1665 800 950
Weight(kg) 22 40 45 62 90 105 160 220 320 370 390 480 590

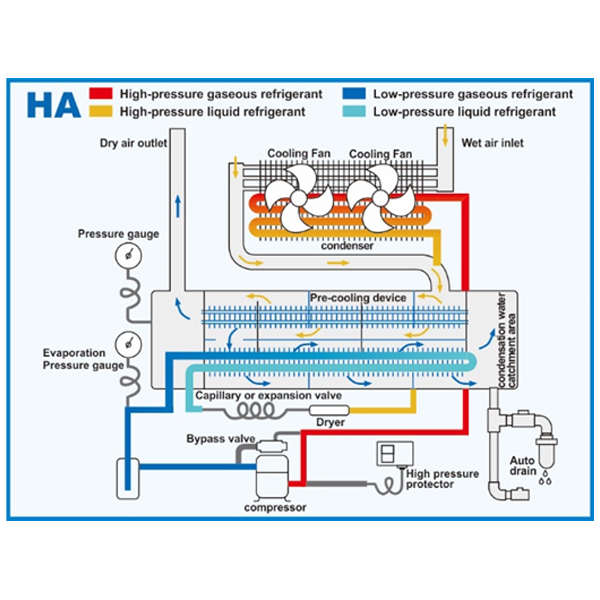

HA Series High Temperature Air Inlet Application

views/proimages/pd-en/title/14Fan.png 05HA 10HA 15HA 20HA 30HA 50HA 75HA 100HA 150HA 200HA 250HA 300HA 400HA
views/proimages/pd-en/title/15Arrow-air.pngNM³/min 0.6 1.2 1.7 2.5 3.8 6.8 9 13 18 23 28 34 45
SCFM 21 43 60 88 135 240 300 459 600 812 953 1130 1588
Air Compressor(HP) 1/5 7.5- 10 15 20 30 30-50 50-60 75 100 150 200 250 300
Inlet Temperature HA:80°C
Ambient Temperature 38°C
Dew Point 2-5°C (7Kg/cm²)
Working Pressure 7Kg/cm² Max. 10Kg /cm²
Refrigerant R134a R-22
Refrigerate Compressor(HP)

1/5 1/3 1/2 3/4    1 1-1/2 2 3 4 5 6 7.5 8
Power 220 single phase  220V / 380V / 440V 3phase
Connector Pipe Size 1/2" 3/4" 1" 1-1/2" 2" 2 - 1/2" 3" 3"F 4"F 4"F 4"F 5"F
Dimensions
(mm)
H 460 600 650 760 760 760 1200 1200 1400 1500 1500 1550 1600
W 400 350 350 400 500 500 700 700 700 750 750 2000 2400
D 500 640 770 820 1070 1070 1270 1270 1515 1665 1665 850 950
Weight(kg) 27 45 50 70 110 130 210 270 400 460 480 570 890
