Water Injection Oil Free Type

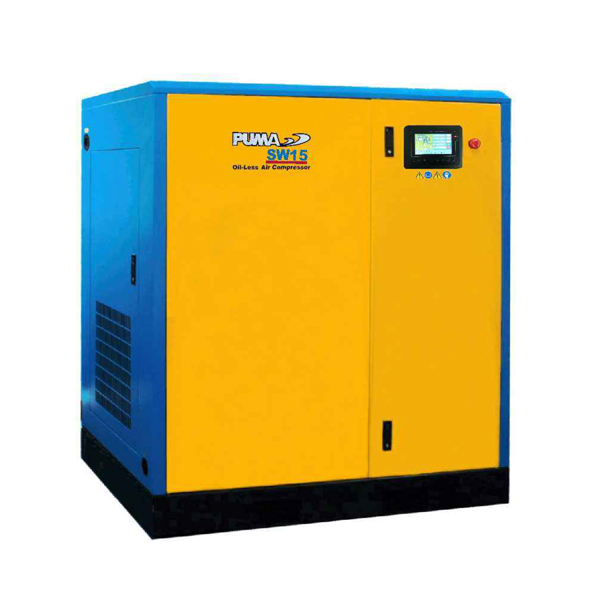

SW15

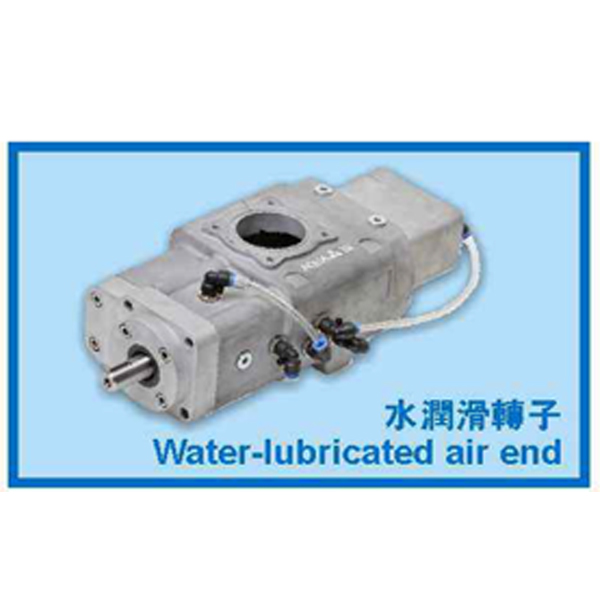

Water-lubricated Air End

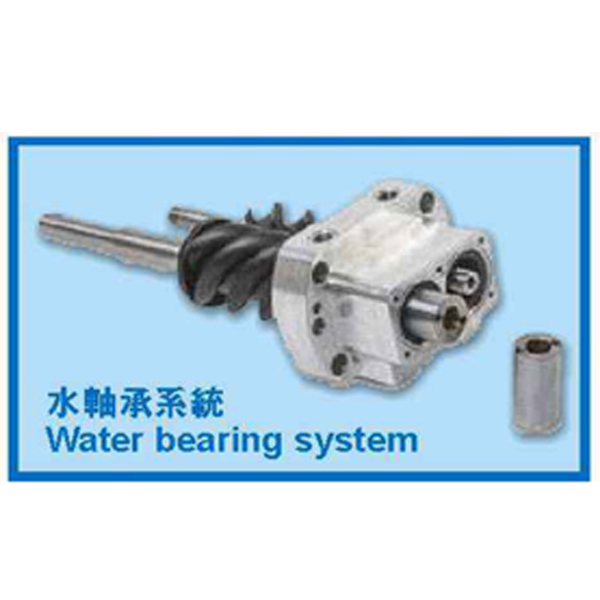

Water Bearing System
Water Injection Oil Free Type
  • SW5
  • SW7
  • SW10
  • SW15
  • SW100
  • SW125
  • SW150
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart

Water Injection Oil Free

views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/06-2WORK.pngviews/proimages/pd-en/title/03-3AIR-M2-CFM.pngviews/proimages/pd-en/title/16Cooling.pngviews/proimages/pd-en/title/10cm.pngviews/proimages/pd-en/title/09-2kg.png
SW5 5 4 8 0.55 19.42 Air 110×100×140 255
SW5 5 4  10 0.48 16.95 Air 110×100×140 255
SW7 7.5 5.5 8 0.81 28.60 Air 110×100×140 265
SW7  7.5 5.5  10 0.71 25.07 Air 110×100×140 265
SW10 10 7.5 8 1.12 39.56 Air 110×100×140 290
SW10  10  7.5  10 1.02 36.02 Air 110×100×140 290
SW15 15 11 8 1.71 60.39 Air 110×100×140 320
SW15 15  11  10 1.39 49.09 Air 110×100×140 320
SW100 100 75 8 11.7 413.24 Water 245×140×160 2,000
SW100  100  75  10 10.3 363.79 Water 245×140×160 2,000
SW125 125 90 8 14.1 498.01 Water 245×140×160 2,250
SW125 125 90  10 12.3 434.43 Water 245×140×160 2,250
SW150 150 110 8 17.3 611.03 Water 260×150×160 2,500
SW150 150  110 10 15.1 533.33 Water 260×150×160 2,500

Advantages

  • Water-lubricated screw compressor delivers 100% oil-free compressed air.
  • Due to patented design, the bearing has longer service.
  • Water-lubricated isothermal compression result in higher efficiency.
  • Low operating cost with water circulation.
  • Low maintenance cost because no oil filter, no oil/air separator.
  • Low speed, low noise, low vibration, without transmission gears.
  • No oil in the system hence easy treatment for compressed air.
  • Suitable for long full load operation due to low operating temperature.
  • Max. Working Pressure: 15kg / cm²
