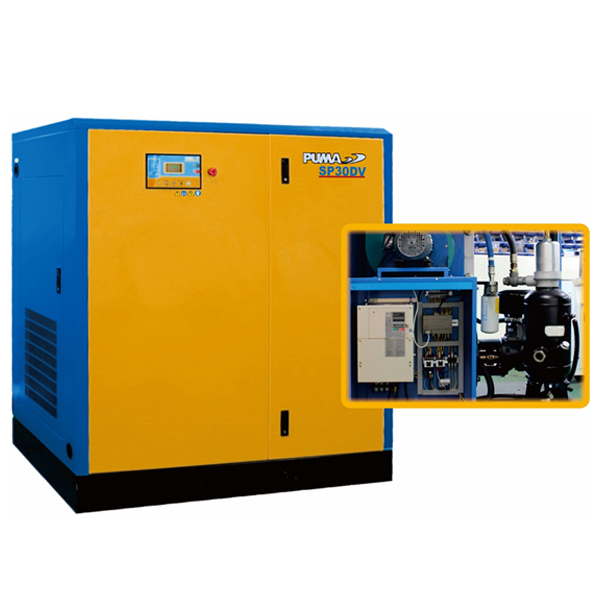

Frequency Inverter Type

SP30DV
Frequency Inverter Type
  • SP10DV
  • SP15DV
  • SP20DV
  • SP30DV
  • SP50DV
  • SP75DV
  • SP100DV
  • SP150DV
  • SP200DV
  • SP250DV
  • SP350DV
  • SP400DV
  • SP450DV
  • SP540DV
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/06-2WORK.pngviews/proimages/pd-en/title/03-3AIR-M2-CFM.pngviews/proimages/pd-en/title/16Cooling.pngviews/proimages/pd-en/title/10cm.pngviews/proimages/pd-en/title/09-2kg.pngviews/proimages/pd-en/title/17dBA.png
SP10DV 10 7.5 8 1.15 / 40.5 Air 110×75×110 380 70
SP15DV 15 11 8 1.63 / 57.4 Air 135×80×110 450 72
SP20DV 20 15 8 2.20 / 77.4 Air 135×80×110 470 72
SP30DV 30 22 8 3.43 / 120.7 Air 145×90×145 750 75
SP50DV 50 37 8 5.50 / 193.6 Air 170×92×163 950 78
SP75DV 75 55 8 8.60 / 302.7 Air 200×120×178 1850 79
SP100DV 100 75 8 11.90 / 418.9 Air 215×125×185 2200 80
SP150DV 150 110 8 19.80 / 697.0 Air/Water 260×175×185 3150 80
SP200DV 200 150 8 24.00 / 845.0 Air/Water 260×175×185 3350 80
SP250DV 250 185 8 30.40 / 1070.0 Water 290×160×235 4450 80
SP350DV 350 250 8 42.00 / 1478.0 Water 350×200×210 4800 82
SP400DV 400 300 8 51.00 / 1795.0 Water 420×230×235 6800 82
SP450DV 450 355 8 62.00 / 2182.0 Water 420×230×235 7100 82
SP540DV 540 450 8 73.00 / 2570.0 Water 420×230×235 7500 82

  • Voltage: 3Ø , 220/380/440 (50HP↓) , 380/440(75HP↑)
  • Drive: Direct coupling
  • Cooling: Air
  • Ambient Temperature: 0 ~ 45℃
  • Motor: TEFC for VSD with F class insulation.
  • Starting Mode: Low starting amperage
  • Control: steady pressure supply and microcomputer panel
  • Effective Load Range: 30% ~ 100%
