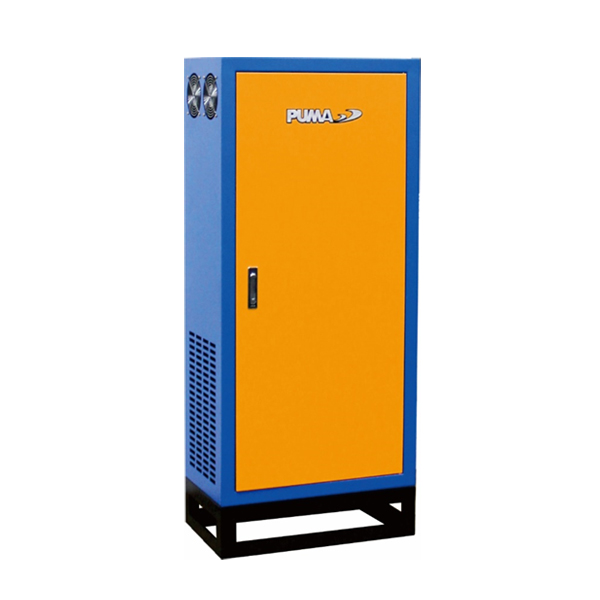

Frequency Inverter Box
  • FIC10
  • FIC20
  • FIC30
  • FIC50
  • FIC75
  • FIC100
Check the item No. you interested to view their specification
views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/10cm.png
FIC10 10 60×120×35
FIC20 20 60×125×35
FIC30 30 65×135×40
FIC50 50 100×180×60
FIC75 75 100×180×60
FIC100 100 100×180×60
Remark :
  1. Voltage : 220V / 380V / 440V
  2. Special demand can be negotiated.
  3. This control box is suitable to add on to the conventional air compressor to save energy.

How to choose a screw compressor

Pressure Determination

  • The higher the pressure, the more electricity costs. The size and length of the pipe may cause some pressure drop, therefore the total pressure drop plus the required operating pressure is the minimum required compressor output pressure.
  • Choose the pressure according to the actual requirement, or it will increase the unnecessary electricity cost.

Air Demand and Model Selection

  • Calculate the total air demand and add reasonable capacity for contingent or unusual usage and future expansion.
  • Check the ratio of air delivery (m3 /min) over the power consumption (Kw). The bigger the ratio, the more efficient it is.

Quality of the Compressed Air

  • Water in the compressed air will damage important components in the circulation system such as sensors, pneumatic tool, pneumatic devices, valve, pipes, etc. Because water will rust or obstruct the air passage, hence reduce the product quality and increase the cost for maintenance. It is necessary to install the “compressed air filtration system “

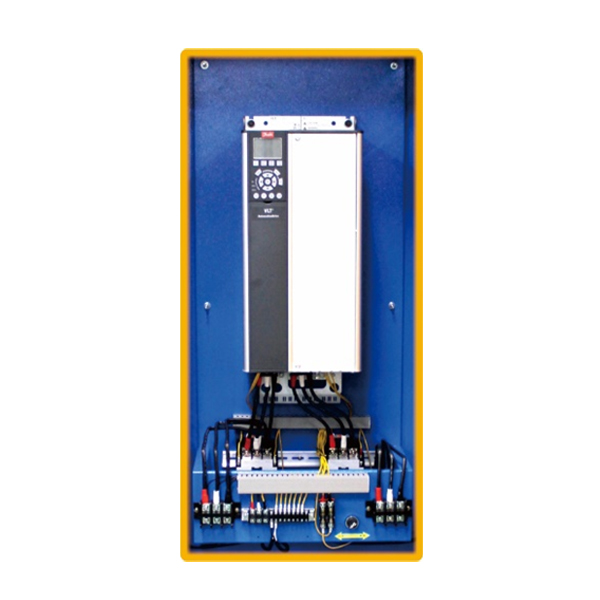

Improvement for your air compressor: Frequency Inverter Box

By installing an independent Frequency Inverter Box, with easy wiring instruction and adding the pressure sensor, the converting project is finished. It’s an easy task for converting, no change on old interface and protection system. Same operation as old unit and easy maintenance for the owner.
