DE Series (Direct Drive Oil-Lube Series)

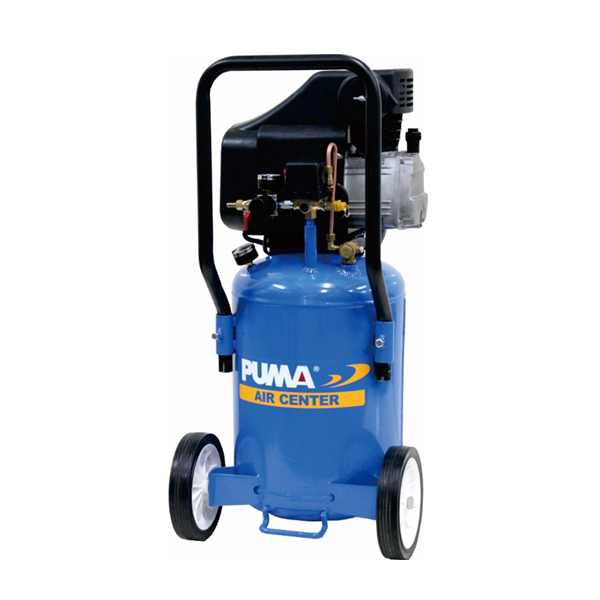

DE230VP
DE Series (Direct Drive Oil-Lube Series)
  • DE18
  • DE225
  • DE230VP
  • DE340
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/03AIR-CFM.pngviews/proimages/pd-en/title/04MAX-RPM.pngviews/proimages/pd-en/title/05NO.pngviews/proimages/pd-en/title/06WORK.pngviews/proimages/pd-en/title/08AIR-Gal.pngviews/proimages/pd-en/title/09Lbs.pngviews/proimages/pd-en/title/10cm.png

50HZ

DE18 1.00 / 0.75 125/4.4 2800 1 8/115 8/2.2 15/33 50×20×53
DE225 2.00 / 1.50 190/6.7 2800 1 8/115 23/6.0 24/53 56×29×63
DE230VP 2.00 / 1.50 190/6.7 2800 1 8/115 30/8.0 42/93 40×40×86
DE340 3.00 / 2.20 365/12.9 2800 2 8/115 40/10.5 46/101 65×32×63

60HZ

DE18 1.00 / 0.75 150/5.3 3400 1 8/115 8/2.2 15/33 50×20×53
DE225 2.00 / 1.50 230/8.1 3400 1 8/115 23/6.0 24/53 56×29×63
DE230VP 2.00 / 1.50 230/8.1 3400 1 8/115 30/8.0 42/93 40×40×86
DE340 3.00 / 2.20 440/15.5 1700 2 8/115 40/10.5 46/101 65×32×63
  • Compact and portable designs.
  • Oil-lube models feature “monobloc” die-cast aluminum pump with cast iron cylinder.
  • All models are equipped with induction motors with overload protection.
  • Ideal for home and professional applications.
