BE Series (Single Stage Belt Drive Series)

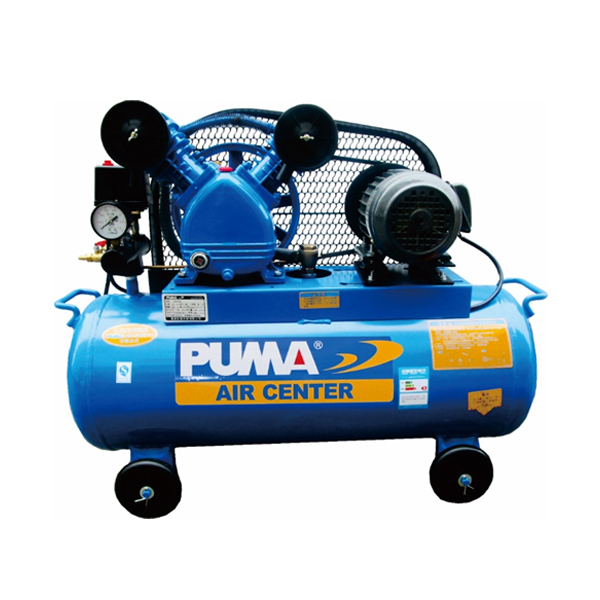

BE160
BE Series (Single Stage Belt Drive Series)
  • BE160
  • BE290
  • BE3100
  • BE4120
  • BE5120
  • BE7160A
  • BE10250
  • BE15300
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/03AIR-CFM.pngviews/proimages/pd-en/title/04MAX-RPM.pngviews/proimages/pd-en/title/05NO.pngviews/proimages/pd-en/title/06WORK.pngviews/proimages/pd-en/title/08AIR-Gal.pngviews/proimages/pd-en/title/09Lbs.pngviews/proimages/pd-en/title/10cm.png
BE160 1.0/0.75 140/4.9 740 2 8/115 58/15 65/143 100×45×79
BE290 2.0/1.50 270/9.5 880 2 8/115 88/23 90/198 107×51×87
BE3100 3.0/2.20 420/14.8 880 3 8/115 95/25 105/231 113×53×91
BE4120 4.0/3.00 530/18.7 880 2 8/115 110/30 140/308 130×57×97
BE5120 5.0/3.75 705/24.9 780 3 8/115 110/30 160/352 130×57×100
BE7160A 7.5/5.50 960/33.9 775 3 8/115 155/40 220/484 156×59×106
BE10250 10.0/7.50 1390/49.1 735 3 8/115 228/60 300/660 159×69×125
BE15300 15.0/11.00 1930/68.2 800 4 8/115 285/75 410/902 195×77×135

Features:

The new single body valve design can increase compression efficiency and make maintenance very convenient. By adopting the most superior cast iron material, this air compressor is designed for industry use thus it is super water resistant. With the multi-blade heat dissipating fan, forced cooling, the heat dissipating system of this compressor is considered the best.

Usage:

Suitable for use in factories, automatic systems, auto service, finishing and any works requiring compressed air.
