| Model | H.P. | R.P.M. | *Displ. CFM | *Deliv. CFM | No. of Cyl. | Max. PSI. | Dimension
(in) | Weight
(lbs.) | Remarks |
|---|

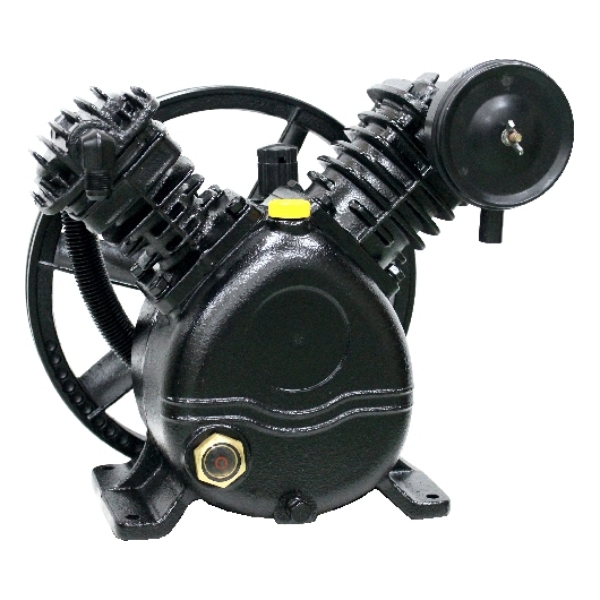

| GT27 |
1.75-2.25 |
900-1300 |
8.1 |
6.9 |
2 (Lx1&Hx1) |
175 |
14x11x13 |
45 |
|

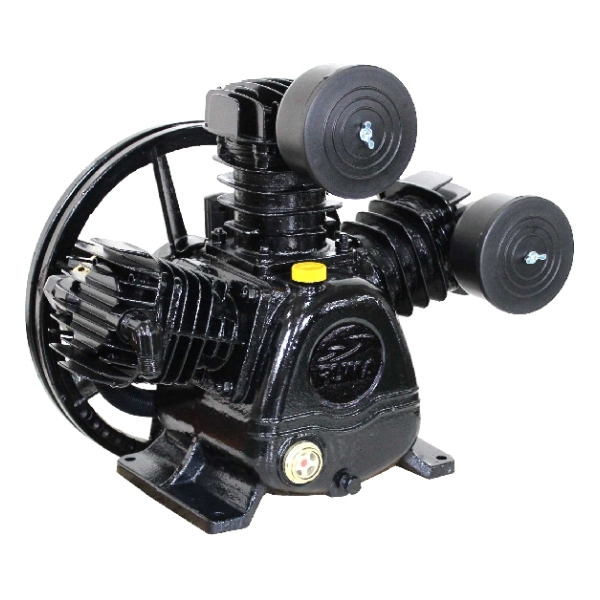

| TE30 |
3.4-4.5 |
985-1200 |
13.5 |
11.5 |
3 (Lx2&Hx1) |
175 |
18x11x15 |
58 |
|

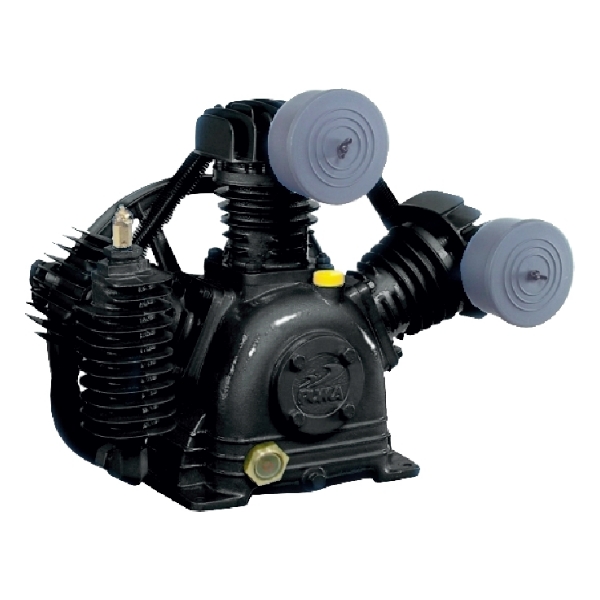

| CT40 |
4-5 |
850-1260 |
17.7 |
15.5 |
3 (Lx2&Hx1) |
175 |
20x14x17 |
73 |
|

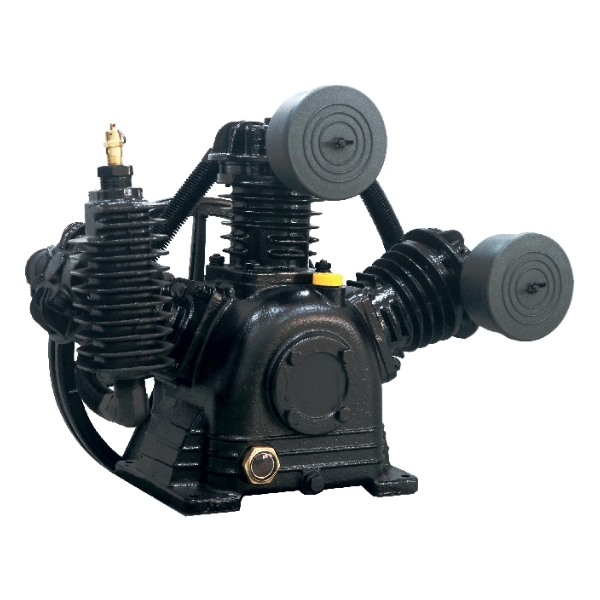

| CT47 |
4.5-6.5 |
850-1500 |
24.5 |
20.8 |
3 (Lx2&Hx1) |
175 |
18.5x13x15.5 |
71.5 |
|

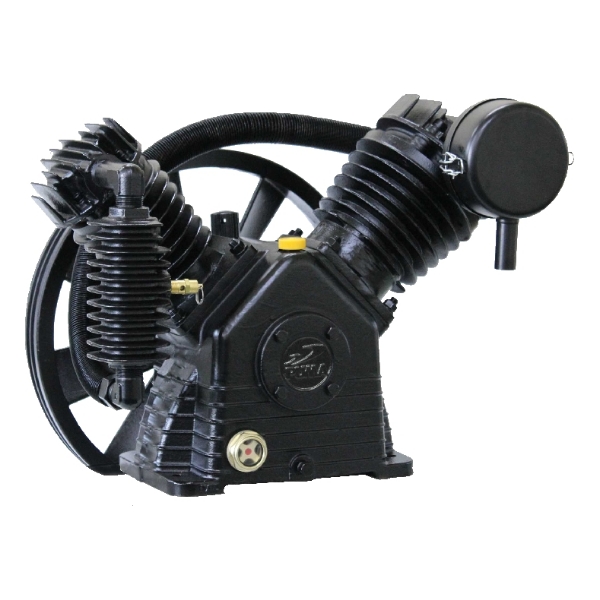

| CT51 |
5-7.5 |
900-1300 |
27.7 |
23.5 |
2 (Lx1&Hx1) |
175 |
23x14x21 |
123 |
|

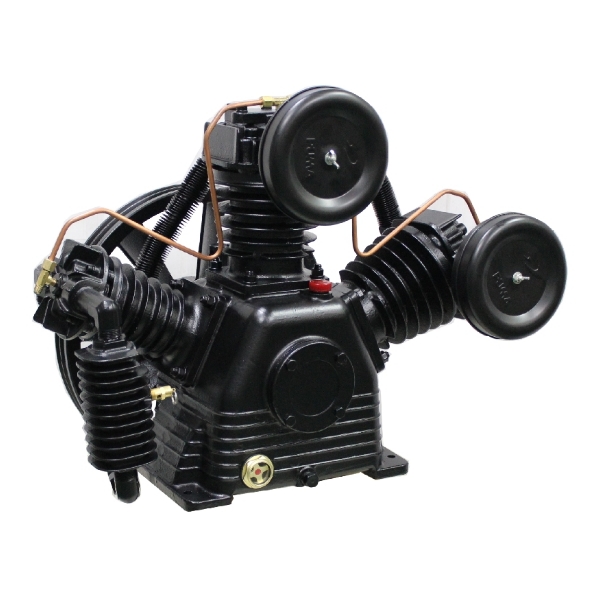

| CUT75 |
7.5-10 |
860-1300 |
39 |
33 |
3 (Lx2&Hx1) |
175 |
25.6x17x21.6 |
158.5 |
w/Head unloader |

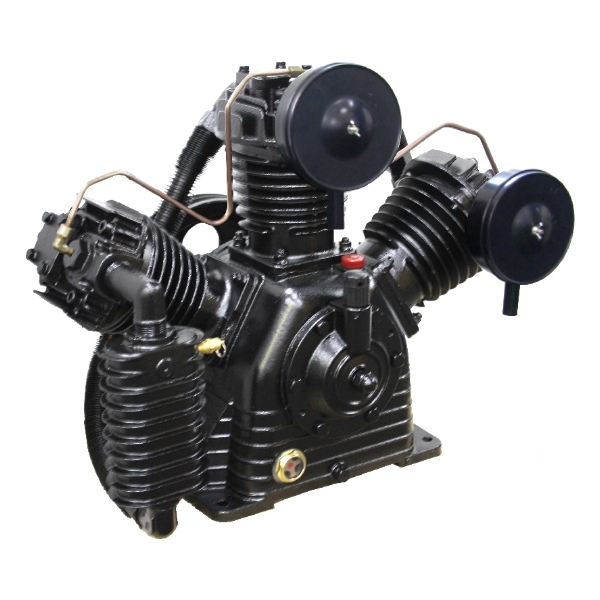

| CUT100 |
10 |
950 |
40 |
34 |
3 (Lx2&Hx1) |
175 |
28x17x24 |
210 |
w/Head unloader |

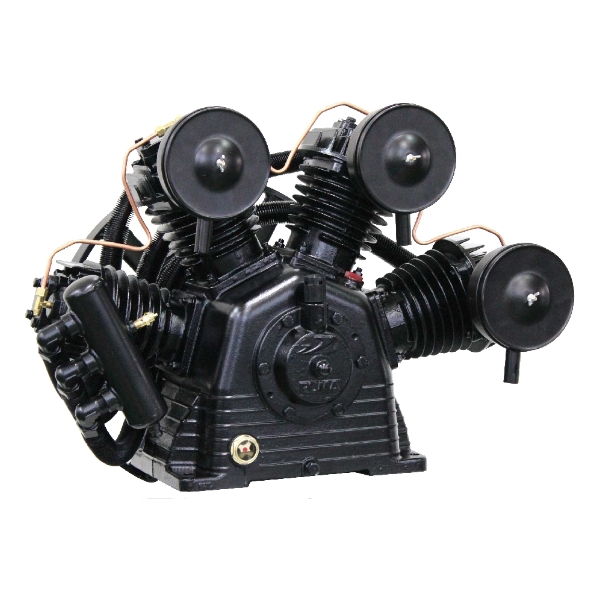

| CUT150 |
15 |
870 |
58 |
48 |
4 (Lx3&Hx1) |
175 |
28x22x23 |
308 |
w/Head unloader |

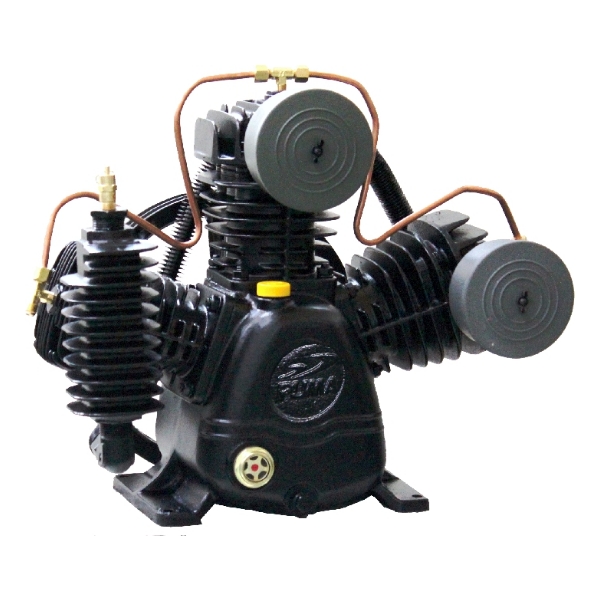

| TUE50 |
3.5-5 |
850-1500 |
17 |
15 |
3 (Lx2&Hx1) |
175 |
18x11x15 |
61 |
w/Head unloader |

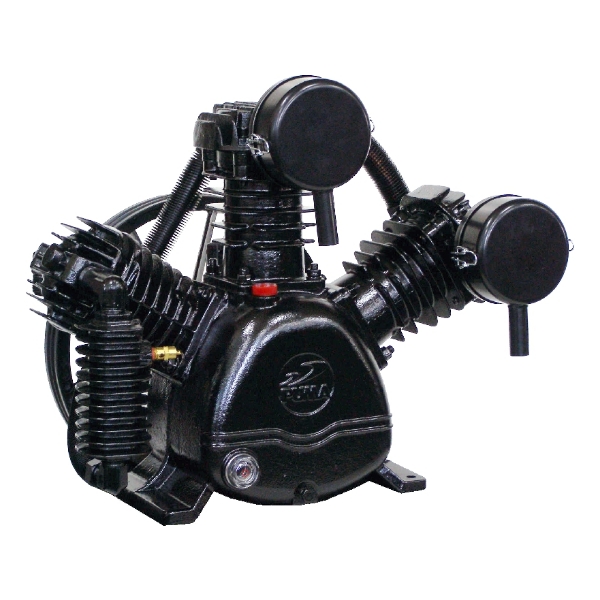

| TK50 |
5-7.5 |
950-1300 |
28 |
23.6 |
3 (Lx2&Hx1) |
175 |
23x15x20 |
132 |
|

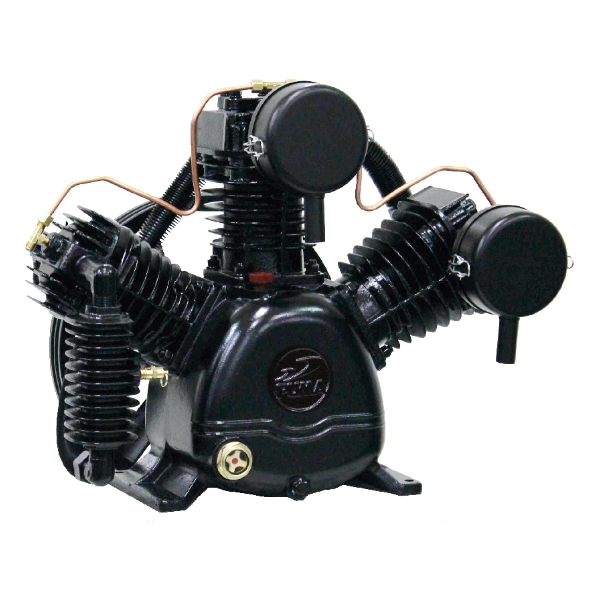

| TUK50 |
5-7.5 |
950-1300 |
28 |
23.6 |
3 (Lx2&Hx1) |
175 |
23x15x20 |
135 |
w/Head unloader |

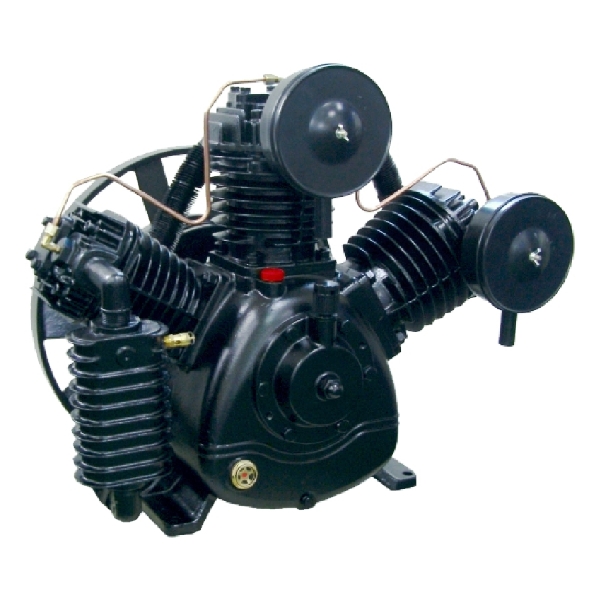

| TUK100 |
10 |
870 |
40 |
34.2 |
3 (Lx2&Hx1) |
175 |
27x21x22 |
250 |
w/Head unloader |

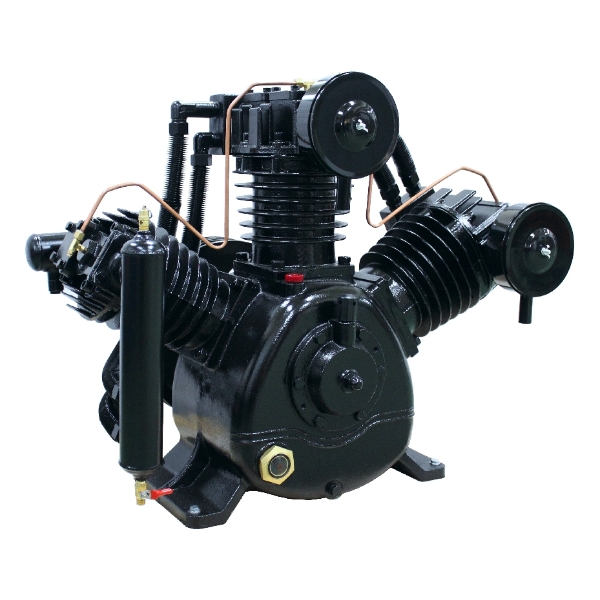

| TUK200 |
20 |
935 |
74.7 |
62 |
3 (Lx2&Hx1) |
175 |
33.1x21.3x26 |
415 |
w/Head unloader |
* Displacement CFM ratings are based on max. horsepower of units, and Delivered CFM ratings are measured at 90 PSIG under max. horsepower.
