Single Stage Belt Drive Stationary Series Single-Stage-Belt-Drive-Stationary-Series

Model	Electric Motor			Pump R.P.M	Max. Working PSI.	C.F.M.		Tank			Weight (lbs.)	Remark	Magnetic Starter
Model	H.P.	R.P.M./FRAME	Volt./Phase/Amp.	Pump R.P.M	Max. Working PSI.	@40 PSI	@90 PSI	Gal.	Style	Code	Weight (lbs.)	Remark	Magnetic Starter

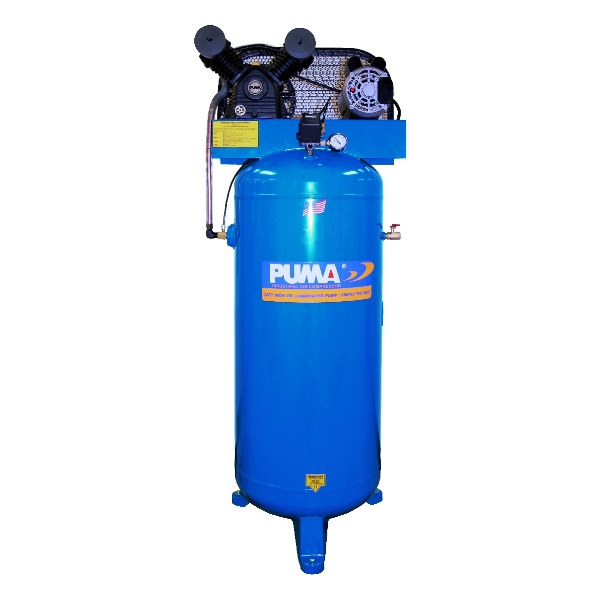

PK-6060V	3	3450/56	208-230/Single/16.6-15	980	135	12.6	11.3	60	Vertical	ASME/CRN	305		n/a

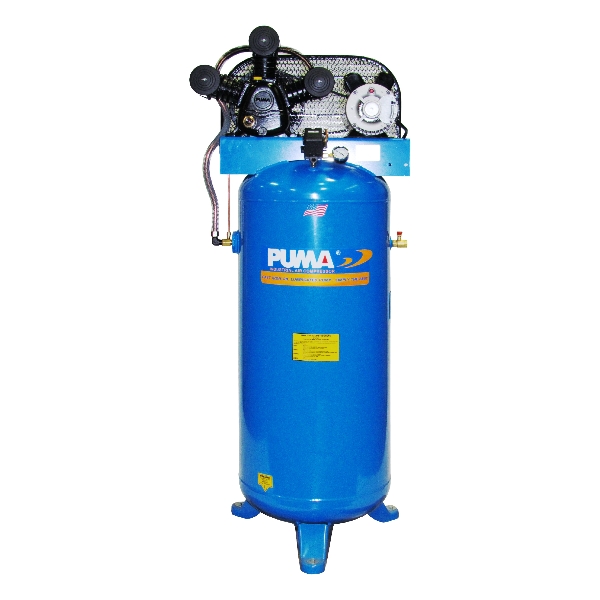

PK-6560V	5	3450/56	208-230/Single/21-19	1180	135	17	15.5	60	Vertical	ASME/CRN	325		Option

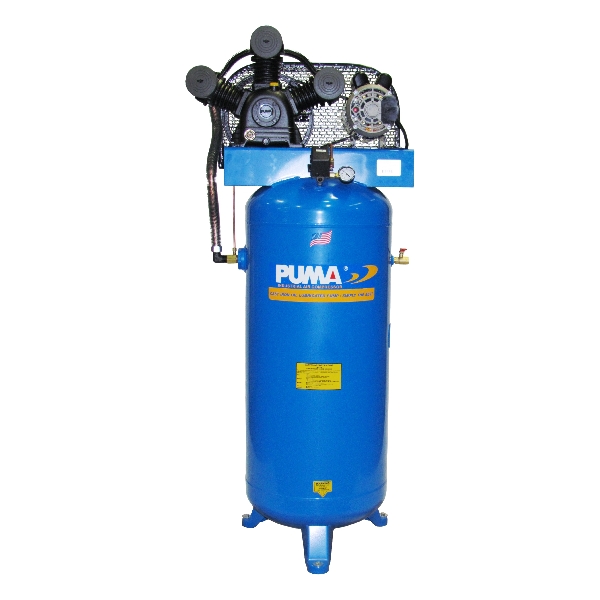

PK-7060V	6.5	3450/182	208-230/Single/24.5-23	1130	135	21	19.5	60	Vertical	ASME/CRN	360	Extend Water Drain	Combo Pressure Switch Starter

Oil lubricated, single stage cast iron pumps.
Single Phase induction motors with overload protection.
1/2” outlet ball valve and 1/4” drain ball valve on all units.
Accessories such as automatic water drain, vibration damper, and regulator filter are available.
Ideal for home and professional applications.
