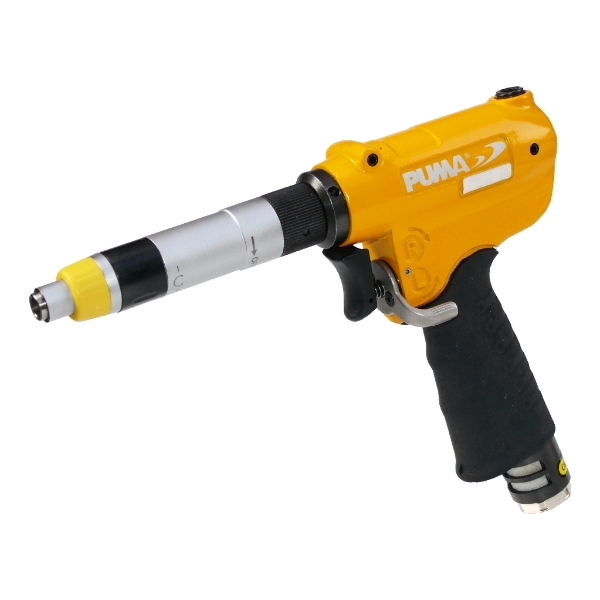

Air Shut-off Clutch Screwdriver Piston Type
  • AT-4016P15
  • AT-4016P11
  • AT-4017P16
  • AT-4017P09
  • AT-4018P17
  • AT-4018P11
  • AT-4018P07
  • AT-4019P17
  • AT-4019P11
  • AT-4019P07
  • AT-4019P05
Check the item No. you interested to view their specification
Model No.Hex.
shank size
Capacity
bolt size
Free
Speed
RPM
Max.
torque
Overall
Length
Air
Inlet
(PT)
Air
Hose
(ID)
Avg. Air
Consumption
Net
Weight
Working Air
Pressure
Sug.
Air
Comp.
(HP)
inchmmmmin-lbN-minchmmscfml/minlbkgpsikg/cm²
AT-4016P15 1/4 6.35 M2 1500 2.7~7 0.3~0.8 8.4 214 1/4” 1/4” 5 142 1.54 0.7 70 5.0 2
AT-4016P11 1/4 6.35 M2 1100 3.5~8.8 0.4~1 8.4 214 1/4” 1/4” 5 142 1.54 0.7 70 5.0 2
AT-4017P16 1/4 6.35 M2~M3 1600 6.2~12 0.7~1.4 8.2 209 1/4” 1/4” 7 198 1.76 0.8 70 5.0 2
AT-4017P09 1/4 6.35 M3 900 9.7~18 1.1~2.1 8.2 209 1/4” 1/4” 7 198 1.76 0.8 70 5.0 2
AT-4018P17 1/4 6.35 M3 1700 8.8~25 1~2.8 9 228 1/4” 1/4” 8 226 2.42 1.1 85 6.0 2
AT-4018P11 1/4 6.35 M3~M4 1100 8.8~30 1~3.4 9 228 1/4” 1/4” 8 226 2.42 1.1 85 6.0 2
AT-4018P07 1/4 6.35 M3~M4 700 8.8~40 1~4.5 9 228 1/4” 1/4” 8 226 2.42 1.1 85 6.0 2
AT-4019P17 1/4 6.35 M4 1700 17.6~38 2~4.3 9 228 1/4” 1/4” 9 255 2.42 1.1 85 6.0 2
AT-4019P11 1/4 6.35 M4~M5 1100 22~52 2.5~5.9 9 228 1/4” 1/4” 9 255 2.42 1.1 85 6.0 2
AT-4019P07 1/4 6.35 M5 700 26.4~70 3~8 9 228 1/4” 1/4” 9 255 2.42 1.1 85 6.0 2
AT-4019P05 1/4 6.35 M6 550 26.4~96 3~10.9 9 228 1/4” 1/4” 9 255 2.42 1.1 85 6.0 2
