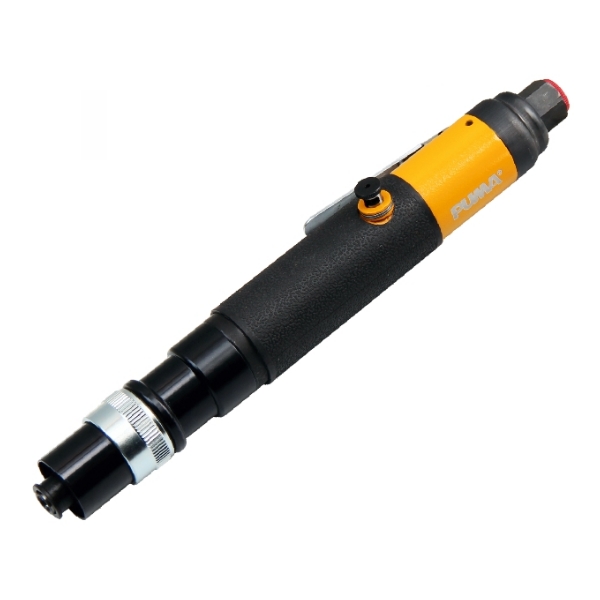

Air Shut-off Clutch Screwdriver

Air Shut-off Clutch Screwdriver
Air Shut-off Clutch Screwdriver
  • AT-4010
  • AT-4010H
  • AT-4011
  • AT-4011H
  • AT-4013
  • AT-4014
  • AT-4015
  • AT-4110
  • AT-4111
  • AT-4112
  • AT-4113
  • AT-4114
  • AT-4115
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
Model No.Hex.
shank size		Capacity
bolt size		Free
Speed
RPM		Max.
torque		Overall
Length		Air  Inlet
(PT)		Air
Hose (ID)		Avg. Air
Consumption		Net
Weight		Working Air
Pressure		Packing
Pcs/Ctn/G.W./Cuft
(kg)		Sug.
Air
Comp.
(HP)
inchmmmmin-lbN-minchmmscfml/minlbkgpsikg/cm²
AT-4010 5/32 4 2 2500 1.8~3.1 0.2~0.35 7.00 178 1/4” 1/4” 4.0 113 0.77 0.35 90 6.3 10/Ctn/7Kg/0.9’ 1.5
AT-4010H 1/4 6.35 2 2500 1.8~3.1 0.2~0.35 7.28 185 1/4” 1/4” 4.0 113 0.55 0.25 90 6.3 20/Ctn/8Kg/0.9’ 1.5
AT-4011 5/32 4 2.5 750 3.1~8.9 0.35~1.0 7.48 190 1/4” 1/4” 4.0 113 0.82 0.37 90 6.3 10/Ctn/7Kg/0.9’ 1.5
AT-4011H 1/4 6.35 2.5 750 3.1~8.9 0.35~1.0 7.60 192 1/4” 1/4” 4.0 113 0.60 0.27 90 6.3 20/Ctn/8.5Kg/0.9’ 1.5
AT-4013 1/4 6.35 3.5 1000 10.6~19.5 1.2~2.2 9.02 229 1/4” 1/4” 5.0 142 1.56 0.71 90 6.3 20/ Ctn/14Kg/1.4’ 2
AT-4014 1/4 6.35 4~5 950 17.7~42.5 2.0~4.8 9.84 250 1/4” 1/4” 5.5 156 2.05 0.93 90 6.3 10/ Ctn/12Kg/1.2’ 2
AT-4015 1/4 6.35 5~6 650 26.6~62 3.0~7.0 9.84 250 1/4” 1/4” 5.5 156 2.05 0.93 90 6.3 10 /Ctn/12Kg/1.2’ 2
AT-4110 1/4 6.35 4 800 14.2~27.5 1.6~3.1 11.22 285 1/4” 1/4” 7.0 198 2.09 0.95 90 6.3 10/ Ctn/12Kg/1.2’ 2
AT-4111 1/4 6.35 4 1450 10.6~21.3 1.2~2.4 11.22 285 1/4” 1/4” 7.0 198 2.09 0.95 90 6.3 10/ Ctn/12Kg/1.2’ 2
AT-4112 1/4 6.35 4 800 14.2~27.5 1.6~3.1 7.68 195 1/4” 1/4” 7.0 198 2.16 0.98 90 6.3 10/ Ctn/12Kg/1.2’ 2
AT-4113 1/4 6.35 4 1450 10.6~21.3 1.2~2.4 7.68 195 1/4” 1/4” 7.0 198 2.16 0.98 90 6.3 10/ Ctn/12Kg/1.2’ 2
AT-4114 1/4 6.35 5 800 19.5~38.1 2.2~4.3 13.39 340 1/4” 1/4” 7.0 198 2.69 1.22 90 6.3 10/ Ctn/14Kg/1.2’ 2
AT-4115 1/4 6.35 4 1450 10.6~21.3 1.2~2.4 13.39 340 1/4” 1/4” 7.0 198 2.69 1.22 90 6.3 10/ Ctn/14Kg/1.4’ 2
Recommended Air Pressure: 90 psi (6.3/cm2)
