Air Sander

Air Sander
Air Sander
  • AT-7102CF/SF
  • AT-7102C/S
  • AT-7102CR/SR
  • AT-7102DCF/DSF
  • AT-7102DC/DS
  • AT-7102DCR/DSR
  • AT-7108CF/SF
  • AT-7108C/S
  • AT-7108CR/SR
  • AT-7108DCF/DSF
  • AT-7108DC/DS
  • AT-7108DCR/DSR
  • AT-7004C/S
  • AT-7004DC/DS
  • AT-7004VC/VS
  • AT-7002C/S
  • AT-7002DC/DS
  • AT-7002VC/VS
  • AT-7107C/S
  • AT-7107DC/DS
  • AT-7107VC/VS
  • AT-7203C/S
  • AT-7203DC/DS
  • AT-7203VC/VS
  • AT-7015P
  • AT-7023C/S
  • AT-7027
  • AT-7028
  • AT-7043DC/DS
  • AT-7204C/S
  • AT-7205C/S
  • AT-7205DC/DS
  • AT-7205VC/VS
  • AT-7207C/S
  • AT-7207DC/DS
  • AT-7017
  • AT-7017S
  • AT-7018
  • AT-7019
  • AT-7025
  • AT-7029
  • AT-7030
  • AT-7104F
  • AT-7104C
  • AT-7105C
  • AT-7106
  • AT-7106DC
  • AT-7106VC
  • AT-7206C
  • AT-7206DC
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart

＊Working Air Pressure：6.3 kg/cm² (90 psi)
＊Air Inlet：1/4”-PT (NPT)
＊Air Hose (I.D.)：5/16” (8mm)

Model No.Orbit
Dia.
(mm)		Free
Speed
RPM		Sanding Pad SizeOverall
Length		Avg. Air
Consumption		Net WeightPacking
Pcs/Ctn/G.W./Cuft
(kg)		Sug. Air
Comp.
(HP)
inchmminchmmscfml/min5“ Pad6” pad
lbkglbkg
AT-7102CF/SF 2.5 10000 5/6 125/150 6.5 165 8.5 240 1.81 0.82 1.85 0.84 12/Ctn/13 kg/1.8’ 3
AT-7102C/S 5 10000 5/6 125/150 6.5 165 8.5 240 1.85 0.84 1.92 0.87 12/Ctn/13 kg/1.8’ 3
AT-7102CR/SR 9.5 10000 5/6 125/150 6.5 165 8.5 240 1.92 0.87 2.0 0.91 12/Ctn/13 kg/1.8’ 3
AT-7102DCF/DSF 2.5 10000 5/6 125/150 7.28 185 8.5 240 1.81 0.82 1.9 0.86 12/Ctn/14.5 kg/1.8’ 3
AT-7102DC/DS 5 10000 5/6 125/150 7.28 185 8.5 240 1.85 0.84 1.96 0.89 12/Ctn/14.5 kg/1.8’ 3
AT-7102DCR/DSR 9.5 10000 5/6 125/150 7.28 185 8.5 240 1.92 0.87 2.05 0.93 12/Ctn/14.5 kg/1.8’ 3
AT-7108CF/SF 2.5 10000 5/6 125/150 6.5 165 8.5 240 1.56 0.71 1.65 0.75 12/Ctn/13 kg/1.8’ 3
AT-7108C/S 5 10000 5/6 125/150 6.5 165 8.5 240 1.61 0.73 1.72 0.78 12/Ctn/13 kg/1.8’ 3
AT-7108CR/SR 9.5 10000 5/6 125/150 6.5 165 8.5 240 1.68 0.76 1.81 0.82 12/Ctn/13 kg/1.8’ 3
AT-7108DCF/DSF 2.5 10000 5/6 125/150 7.28 185 8.5 240 1.54 0.7 1.7 0.77 12/Ctn/14.5 kg/1.8’ 3
AT-7108DC/DS 5 10000 5/6 125/150 7.28 185 8.5 240 1.54 0.7 1.7 0.77 12/Ctn/14.5 kg/1.8’ 3
AT-7108DCR/DSR 9.5 10000 5/6 125/150 7.28 185 8.5 240 1.72 0.78 1.85 0.84 12/Ctn/14.5 kg/1.8’ 3
AT-7004C/S 5 10000 5/6 125/150 6.69 170 5.5 156 1.83 0.83 1.87 0.85 10/Ctn/18.5 kg/2.4’ 3
AT-7004DC/DS 5 10000 5/6 125/150 9.84 250 5.5 156 1.94 0.88 1.98 0.90 10/Ctn/18.5 kg/3.1’ 3
AT-7004VC/VS 5 10000 5/6 125/150 9.06 230 5.5 156 1.87 0.85 1.92 0.87 10/Ctn/18.5 kg/2.4’ 3

Model No.Orbit
Dia.
(mm)		Free
Speed
RPM		Sanding Pad SizeOverall
Length		Avg. Air
Consumption		Net WeightPacking
Pcs/Ctn/G.W./Cuft
(kg)		Sug. Air
Comp.
(HP)
inchmminchmmscfml/min5“ Pad6” pad
lbkglbkg
AT-7002C/S 5 10000 5/6 125/150 6.61 168 7.5 212 2.2 1.0 2.25 1.02 10/Ctn/18.5 kg/2.4’ 3
AT-7002DC/DS 5 10000 5/6 125/150 9.06 230 7.5 212 2.4 1.09 2.45 1.11 10/Ctn/18.5 kg/3.1’ 3
AT-7002VC/VS 5 10000 5/6 125/150 8.27 210 7.5 212 2.36 1.07 2.4 1.09 10/Ctn/18.5 kg/2.4’ 3
AT-7107C/S 5 10000 5/6 125/150 6.1 155 6.5 184 1.9 0.86 1.94 0.88 12/Ctn/17 kg/2.1’ 3
AT-7107DC/DS 5 10000 5/6 125/150 9.45 240 6.5 184 2.12 0.96 2.16 0.98 6/Ctn/14.6 kg/2.2’ 3
AT-7107VC/VS 5 10000 5/6 125/150 8.46 215 6.5 184 2.07 0.94 2.12 0.96 12/Ctn/17 kg/2.1’ 3

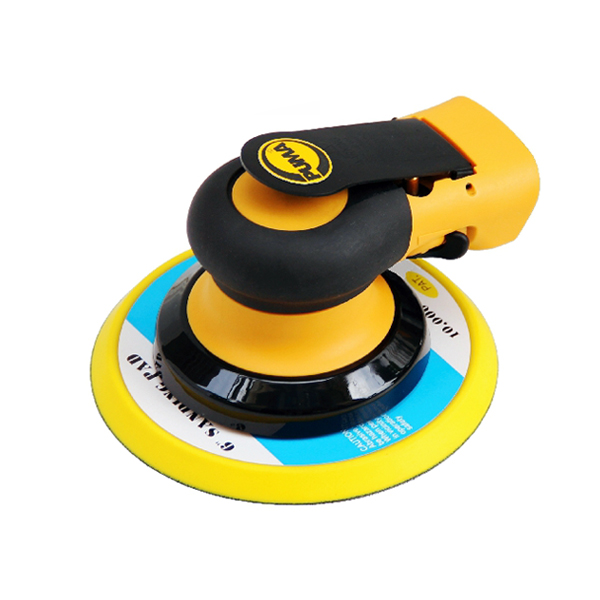

AT-7203C/S 5 10000 5/6 125/150 5.59 142 7.5 212 1.70 0.77 1.74 0.79 10/Ctn/10 kg/1.8’ 3
AT-7203DC/DS 5 10000 5/6 125/150 8.58 218 7.5 212 1.74 0.79 1.79 0.81 10/Ctn/12 kg/2.12’ 3
AT-7203VC/VS 5 10000 5/6 125/150 8.58 218 7.5 212 1.74 0.79 1.79 0.81 10/Ctn/12 kg/2.12’ 3

Model No.Orbit
Dia.
(mm)		Free
Speed
RPM		Sanding Pad SizeOverall
Length		Avg. Air
Consumption		Net WeightPacking
Pcs/Ctn/G.W./Cuft
(kg)		Sug. Air
Comp.
(HP)
inchmminchmmscfml/min5“ Pad6” pad
lbkglbkg
AT-7015P 5 10000 5/6 125/150 9.45 240 7 198 3.92 1.78 3.97 1.8 10/Ctn/22 kg/1.3’ 3
AT-7023C/S 10 10000 5/6 125/150 11.89 302 9 255 4.01 1.82 4.06 1.84 6/Ctn/17.3 kg/2.3’ 3
AT-7027 5 9000 5/6 125/150 6.1 155 6 170 2.38 1.08 2.42 1.1 12/Ctn/19.5 kg/1.9’ 3
AT-7028 5 9000 5/6 125/150 6.1 155 6 170 2.47 1.12 2.51 1.14 12/Ctn/20.5 kg/1.9’ 3
AT-7043DC/DS 5 10000 5/6 125/150 7.0 178 10.5 297 3.26 1.48 3.3 1.5 10/Ctn/20 kg/3.01’ 3
AT-7204C/S 5 10000 5/6 125/150 5.51 140 8 226 1.45 0.66 1.5 0.68 10/Ctn/10.2 kg/1.7’ 3
AT-7205C/S 5 10000 5/6 125/150 6.38 162 7 198 1.81 0.82 1.85 0.84 10/Ctn/18.5 kg/2.4’ 3
AT-7205DC/DS 5 10000 5/6 125/150 9.57 243 7 198 2.03 0.92 2.07 0.94 10/Ctn/18.5 kg/3.1’ 3
AT-7205VC/VS 5 10000 5/6 125/150 8.31 211 7 198 2.03 0.92 2.07 0.94 10/Ctn/18.5 kg/2.4’ 3
AT-7207C/S 5 10000 5/6 125/150 9.84 250 9 255 2.34 1.06 2.38 1.08 6/Ctn/10.0 kg/1.9’ 3
AT-7207DC/DS 5 10000 5/6 125/150 9.84 250 9 255 2.34 1.06 2.38 1.08 6/Ctn/10.0 kg/1.9’ 3

Model No.Free Speed
RPM		Orbit Dia.
(mm)		Sanding Pad SizeOverall
Length		Avg. Air ConsumptionNet WeightPacking
Pcs/Ctn/G.W./Cuft
(kg)		Sug. Air Comp.
(HP)
inchmminchmmscfml/minlbkg
AT-7017 20000 1.6 4×4.33 100×110 5.51 140 4 113 1.06 0.48 20/Ctn/18 kg/2.3’ 2
AT-7017S 15000 1.2 3×3.23 75×82 6.1 155 3 85 0.93 0.42 20/Ctn/17 kg/2.3’ 2
AT-7018 8000 5 3.7×7 93×176 7.28 185 7 198 4.19 1.9 10/Ctn/23 kg/1.3’ 3
AT-7019 2500 25.4 2.5×16 63.5×400 15.75 400 6 170 6.13 2.78 6/Ctn/18.7 kg/1.4’ 3
AT-7025 7000 5 3.7×7 93×176 8.66 220 8 226 4.23 1.92 10/Ctn/23 kg/1.44’ 3
AT-7029 8000 5 3×6 75×145 6.3 160 6 170 2.69 1.22 12/Ctn/19.5 kg/1.9’ 3
AT-7030 8000 5 3×6 75×145 6.69 170 6 170 2.73 1.24 12/Ctn/20.5 kg/1.9’ 3
AT-7104F 10000 2.5 4×4.33 100×110 5.16 131 7 198 2.0 0.91 12/Ctn/13.9 kg/1.8’ 3
AT-7104C 10000 5 4×4.33 100×110 5.16 131 7 198 1.79 0.81 12/Ctn/13.9 kg/1.8’ 3
AT-7105C 10000 5 5×3.74 125×95 6.26 159 7 198 1.79 0.81 12/Ctn/13.9 kg/1.8’ 3
AT-7106 9000 2.5 3.7×7 93×176 7.09 180 6 170 2.45 1.11 10/Ctn/18.5 kg/2.4’ 3
AT-7106DC 9000 2.5 3.7×7 93×176 10.08 256 6 170 2.42 1.1 10/Ctn/18.5 kg/3.1’ 3
AT-7106VC 9000 2.5 3.7×7 93×176 8.78 223 6 170 2.4 1.09 10/Ctn/18.5 kg/2.4’ 3
AT-7206C 9000 5 3.7×7 93×176 11.42 290 9.5 269 2.82 1.28 6/Ctn/10 kg/1.9’ 3
AT-7206DC 9000 5 3.7×7 93×176 11.42 290 9.5 269 2.82 1.28 6/Ctn/10 kg/1.9’ 3

D: with self-generated vacuum
V: with central vacuum
C: with velcro pad
S: with stick pad
F: orbit dia.: 2.5mm (for ultra fine sanding)
R: orbit dia.: 9.5mm (for aggressive sanding)
