Air Metal Shear Nipper
| Model No. | Cutting Capacity (mm) | Width Of Cut (mm) | Free Speed (RPM) | Overall Length | Air Inlet (PT) | Air Hose (ID) | Avg. Air Consumption | Net Weight | Working Air Pressure | Packing Pcs/Ctn/G.W./Cuft (kg) | Sug. Air Comp. (HP) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Steel | Alum | inch | mm | scfm | l/min | lb | kg | psi | kg/cm² | |||||||
| AT-6020 | 1.2 | 1.4 | 5.6 | 2500 | 10.04 | 255 | 1/4” | 3/8” | 8 | 226 | 2.42 | 1.1 | 90 | 6.3 | 20/Ctn/24 kg/0.85’ | 2 |
| AT-6021 | 1.2 | 1.4 | 5.6 | 2500 | 8.46 | 215 | 1/4” | 3/8” | 7 | 198 | 2.51 | 1.14 | 90 | 6.3 | 10/Ctn/13.5 kg/1.06’ | 2 |
| AT-6023 | 1.2 | 1.4 | -- | 2500 | 10.04 | 255 | 1/4” | 3/8” | 8 | 226 | 3.03 | 1.35 | 90 | 6.3 | 10/Ctn/16.5 kg/1.44’ | 2 |
| AT-6024 | 1.2 | 1.4 | -- | 2500 | 11.81 | 300 | 1/4” | 3/8” | 8 | 226 | 2.58 | 1.15 | 90 | 6.3 | 10/Ctn/14.5 kg/1.44’ | 2 |

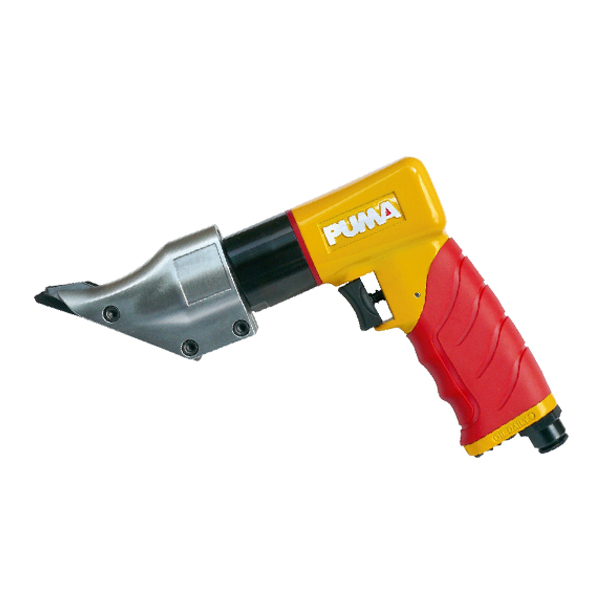

| AT-6121 | 1.2 | 1.4 | 5.6 | 2200 | 8.46 | 215 | 1/4” | 3/8” | 8 | 226 | 2.64 | 1.2 | 90 | 6.3 | 10/Ctn/14 kg/1.06’ | 2 |
| Model No. | Cutting Capacity mm | Body Dia. (mm) | Overall Length | Air Inlet (PT) | Air Hose (ID) | Avg. Air Consumption | Net Weight | Working Air Pressure | Packing Pcs/Ctn/G.W./Cuft (kg) | Sug. Air Comp. (HP) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| copper | iron | inch | mm | l/cycle | lb | kg | psi | kg/cm² | ||||||
| AT-6072 | Ø1.0 | Ø0.5 | 30 | 4.72 | 120 | 1/4” | 1/4” | 0.06 | 0.37 | 0.17 | 57-70 | 4-5 | 30/Ctn/10 kg /0.9’ | 1 |
| AT-6073 | Ø1.6 | Ø1.0 | 36 | 5.35 | 136 | 1/4” | 1/4” | 0.12 | 0.58 | 0.26 | 70-85 | 5-6 | 30/Ctn/12 kg /0.9’ | 1 |
| AT-6074 | Ø2.6 | Ø2.0 | 45 | 6.69 | 170 | 1/4” | 1/4” | 0.23 | 0.75 | 0.34 | 70-85 | 5-6 | 20/Ctn/11 kg /0.9’ | 1 |
| AT-6075 | Ø3.3 | Ø2.8 | 56 | 8.15 | 207 | 1/4” | 1/4” | 0.58 | 1.23 | 0.56 | 70-85 | 5-6 | 20/Ctn/15 kg /0.9’ | 1 |
