Air Concrtet Breaker AirConcrtetBreaker

Model No.	Chisel shank (mm)		Piston Diameter		Piston Stroke		Blow per min. (B.P.M.)	Overall Length		Air Inlet (PT)	Air Hose (ID)	Avg. Air Consumption		Net Weight		Work Air Pressure		packing	Sug. Air
Model No.	Hex.	Round	inch	mm	inch	mm	Blow per min. (B.P.M.)	inch	mm	Air Inlet (PT)	Air Hose (ID)	scfm	l/min	lb	kg	psi	kg/cm²	packing	Sug. Air
AT-2107H/R	14.7	17.3	1-1/8	28.5	2	51	2200	14.4	365	3/8”	1/2”	18	515	17.7	8.04	90	6.3	2/Ctn/17.6 kg/0.95’	5
AT-2108H/R	14.7	17.3	1-1/8	28.5	3	76	1900	15.8	400	3/8”	1/2”	20	566	18.7	8.5	90	6.3	2/Ctn/18.5 kg/1.01’	5
AT-2109H/R	14.7	17.3	1-1/8	28.5	4	102	1500	16.7	425	3/8”	1/2”	22	629	19.6	8.88	90	6.3	2/Ctn/19.6 kg/1.07’	5

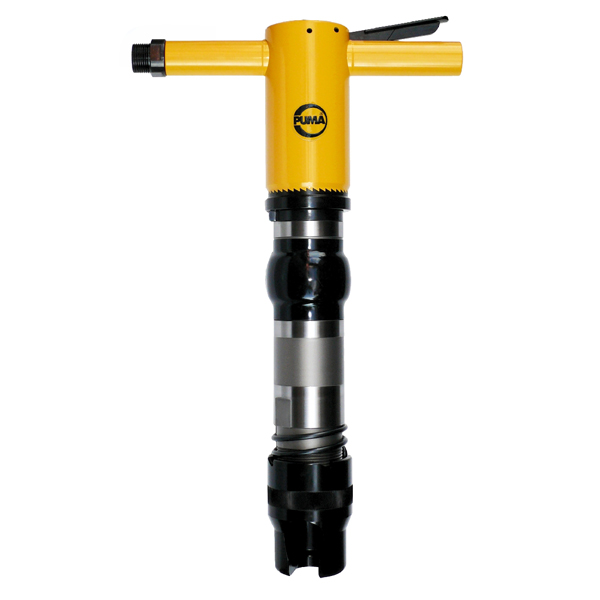

AT-2115	30 mm		1.57”	40	9.25	235	1000	23.2	590	--	3/4”	35	990	54.2	24.6	90	6.3	1/Ctn/26.5 kg/0.9’	10
AT-2116	26 mm		1.38”	35	5.94	151	1300	17.2	438	--	1/2”	28	792	31.1	14.1	90	6.3	1/Ctn/15.6 kg/0.7’	7.5

R：for round chisel shank
H：for hex chisel shank
