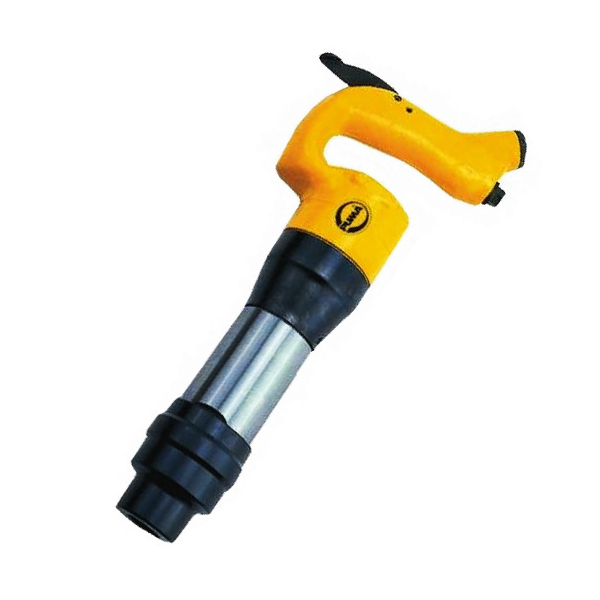

Air Chipping Hammer AirChippingHammer

Model No.	Chisel shank (mm)		Piston Diameter		Piston Stroke		Blow per min. (B.P.M.)	Overall Length		Air Inlet (PT)	Air Hose (ID)	Avg. Air Consumption		Net Weight		Work Air Pressure		packing	Sug. Air
Model No.	Hex.	Round	inch	mm	inch	mm	Blow per min. (B.P.M.)	inch	mm	Air Inlet (PT)	Air Hose (ID)	scfm	l/min	lb	kg	psi	kg/cm²	packing	Sug. Air
AT-2100H/R	12	14	25/32	20	1.77	45	3000	12.4	310	1/4”	3/8”	12	360	5.7	2.6	90	6.3	10/Ctn/31.5 kg/1.45’	3
AT-2110H/R	12	14	25/32	20	1.77	45	3000	12.4	310	1/4”	3/8”	12	360	5.7	2.6	90	6.3	10/Ctn/31.5 kg/1.45’	3
AT-2101H/R	14.7	17.3	1-1/8	28.5	1	25.4	2820	15.2	385	3/8”	1/2”	16	453	12	5.5	90	6.3	2/Ctn/15.7 kg/0.87’	5
AT-2102H/R	14.7	17.3	1-1/8	28.5	2	51	2150	16.1	410	3/8”	1/2”	18	515	13	5.9	90	6.3	2/Ctn/15.9 kg/1.0’	5
AT-2103H/R	14.7	17.3	1-1/8	28.5	3	76	1920	16.9	430	3/8”	1/2”	20	566	14.3	6.5	90	6.3	2/Ctn/16.9 kg/1.06’	5
AT-2104H/R	14.7	17.3	1-1/8	28.5	4	102	1500	18.1	460	3/8”	1/2”	22	629	15.5	7.0	90	6.3	2/Ctn/17 kg/1.08’	5

R：for round chisel shank
H：for hex chisel shank
