7.5 H.P. Two Stage Belt Drive Stationary Series

TN-7580VM
TUE-7580VM (TUE-7580VM3)
TUE-75120VM (TUE-75120VM3)
TUE-75120M (TUE-75120M3)
TUK7580VM (TUK-7580VM3)
TUK-75120VM (TUK-75120VM3)
TUK-75120M (TUK-75120M3)
7.5 H.P. Two Stage Belt Drive Stationary Series
  • TN-7580VM
  • TUE-7580VM
  • TUE-7580VM3
  • TUE-75120VM
  • TUE-75120VM3
  • TUE-75120M
  • TUE-75120M3
  • TUK7580VM
  • TUK-7580VM3
  • TUK-75120VM
  • TUK-75120VM3
  • TUK-75120M
  • TUK-75120M3
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
ModelElectric MotorPump R.P.MMax.
Working PSI.		FAD-CFMTankWeight
(lbs.)		Magnetic
Starter		Outlet Ball
Valve		Ext. Manual
Drain		Premium
Package
H.P.R.P.M. / FRAMEVolt./Phase/Amp.@ 90 PSI@ 175 PSIGal.StyleCode

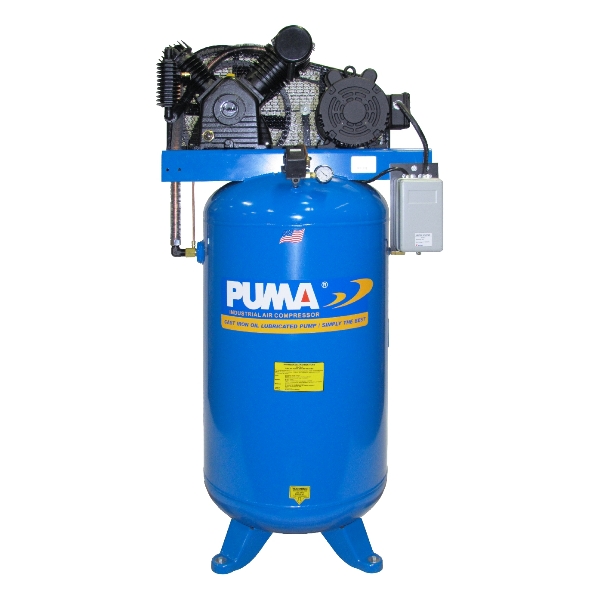

TN-7580VM 7.5 3450 / 184 208-230 / Single / 33 1161 175 22 21 80 Vertical ASME / CRN 550 Yes 1/2" 1/4" Option

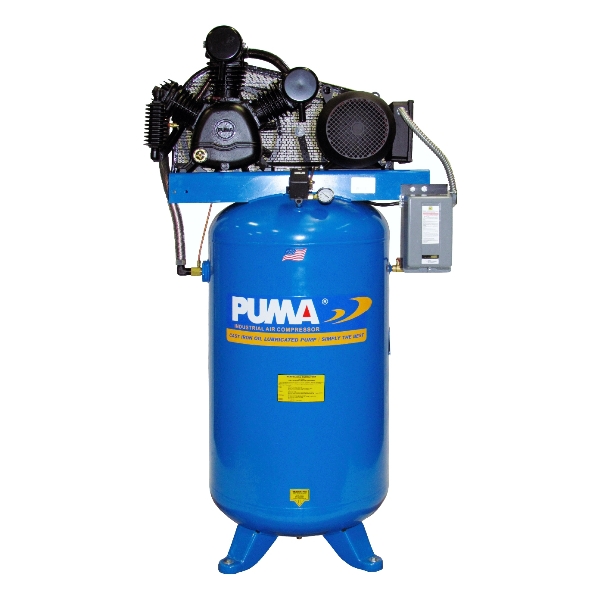

TUE-7580VM 7.5 1740 / 215 208-230 / Single / 33.3-31.3 1180 175 23 22 80 Vertical ASME / CRN 600 Yes 1/2" 1/4" Option
TUE-7580VM3* 7.5 1740 / 215 208-230 or 460 / Three / 19.8-17.9 or 8.97 1180 175 23 22 80 Vertical ASME / CRN 550 Yes 1/2" 1/4" Option

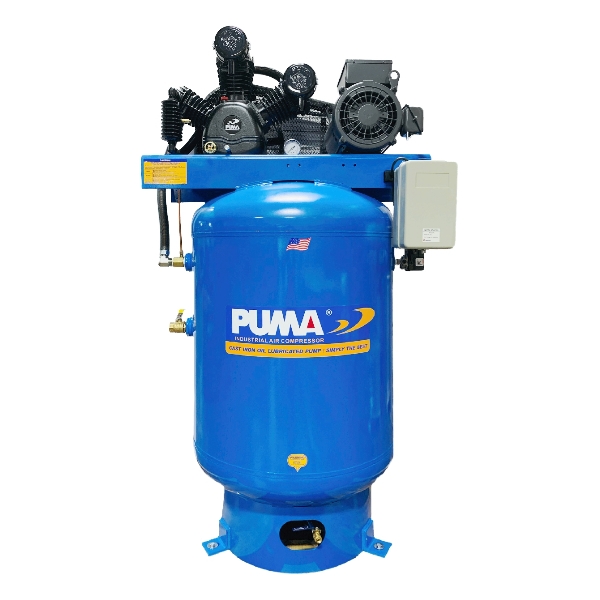

TUE-75120VM 7.5 1740 / 215 208-230 / Single / 33.3-31.3 1180 175 23 22 120 Vertical ASME / CRN 835 Yes 1" 1/4" Option
TUE-75120VM3* 7.5 1740 / 215 208-230 or 460 / Three / 19.8-17.9 or 8.97 1180 175 23 22 120 Vertical ASME / CRN 830 Yes 1" 1/4" Option

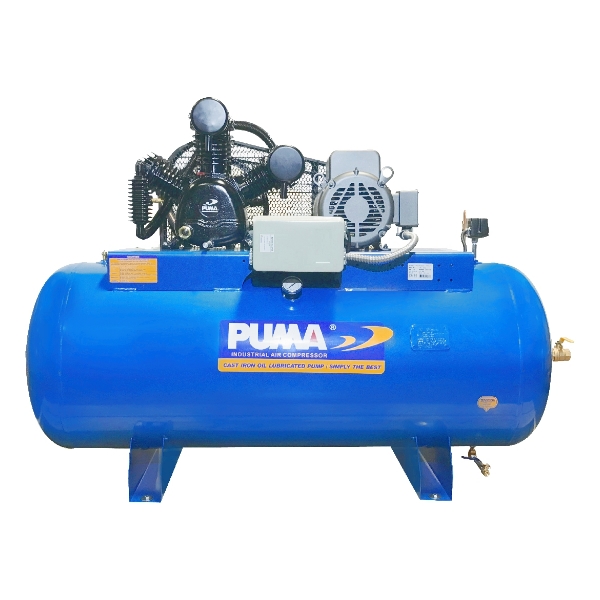

TUE-75120M 7.5 1740 / 215 208-230 / Single / 33.3-31.3 1180 175 23 22 120 Horizontal ASME / CRN 775 Yes 1" 1/4" Option
TUE-75120M3* 7.5 1740 / 215 208-230 or 460 / Three / 19.8-17.9 or 8.97 1180 175 23 22 120 Horizontal ASME / CRN 770 Yes 1" 1/4" Option
TUK-7580VM 7.5 1740 / 215 208- 230 / Single / 40 890 175 24 23 80 Vertical ASME / CRN 620 Yes 1/2" 1/4" Option
TUK-7580VM3* 7.5 1740 / 215 460 / Three / 8.97 890 175 24 23 80 Vertical ASME / CRN 610 Yes 1/2" 1/4" Option

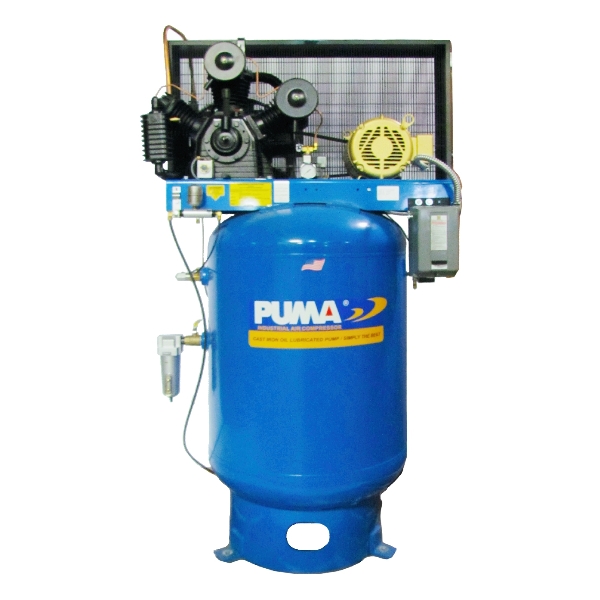

TUK-75120VM 7.5 1740 / 215 208-230 / Single / 40 890 175 24 23 120 Vertical ASME / CRN 950 Yes 1" 1/4" Option
TUK-75120VM3* 7.5 1740 / 215 208-230 or 460 / Three / 19.8-17.9 or 8.97 890 175 24 23 120 Vertical ASME / CRN 945 Yes 1" 1/4" Option

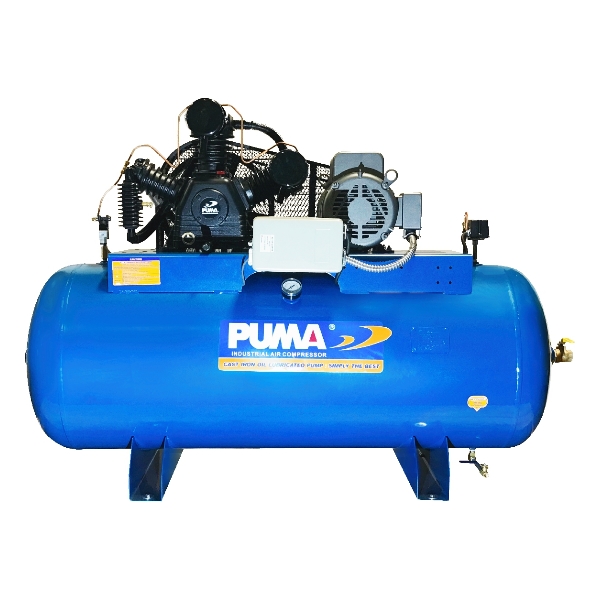

TUK-75120M 7.5 1740 / 215 208-230 / Single / 40 890 175 24 23 120 Horizontal ASME / CRN 955 Yes 1" 1/4" Option
TUK-75120M3* 7.5 1740 / 215 208-230 / Three / 19.8-17.9 890 175 24 23 120 Horizontal ASME / CRN 950 Yes 1" 1/4" Option

* Three phase motor, customers must specify voltage (208-230 or 460 V) when ordering.
