5 H.P. Two Stage Belt Drive Stationary Series

TN-5080VM (TN-5080VM3)
TUK-5080VM (TUK-5080VM3)
TUK-50120VM (TUK-50120VM3)
TUK-50120M (TUK-50120M3)
5 H.P. Two Stage Belt Drive Stationary Series
  • TN-5080VM
  • TN-5080VM3
  • TUK-5080VM
  • TUK-5080VM3
  • TUK-50120VM
  • TUK-50120VM3
  • TUK-50120M
  • TUK-50120M3

Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
ModelElectric MotorPump R.P.MMax.
Working PSI.		FAD-CFMTankWeight
(lbs.)		Magnetic
Starter		Outlet Ball
Valve		Ext. Manual
Drain		Premium
Package
H.P.R.P.M. / FRAMEVolt./Phase/Amp.@ 90 PSI@ 175 PSIGal.StyleCode

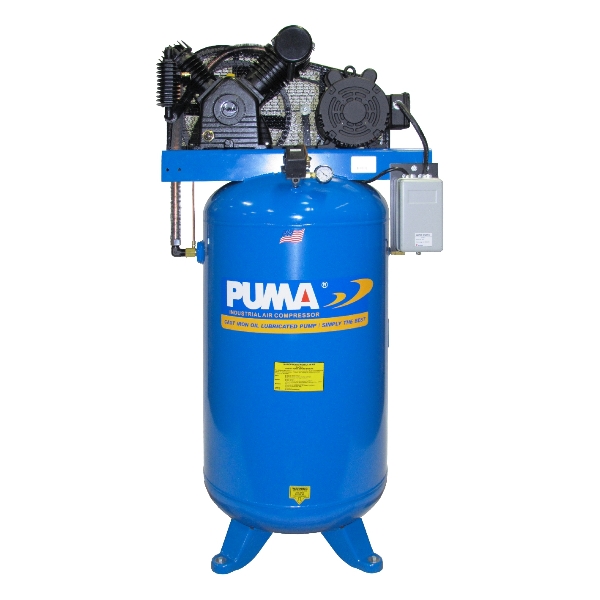

TN-5080VM 5 1740 / 184 208-230 / Single / 16.6-15 950 175 18 16.5 80 Vertical ASME / CRN 550 Yes 1/2" 1/4" Option
TN-5080VM3* 5 1750 / 184 208-230 or 460 / Three / 23-21 950 175 18 16.5 80 Vertical ASME / CRN 535 Yes 1/2" 1/4" Option

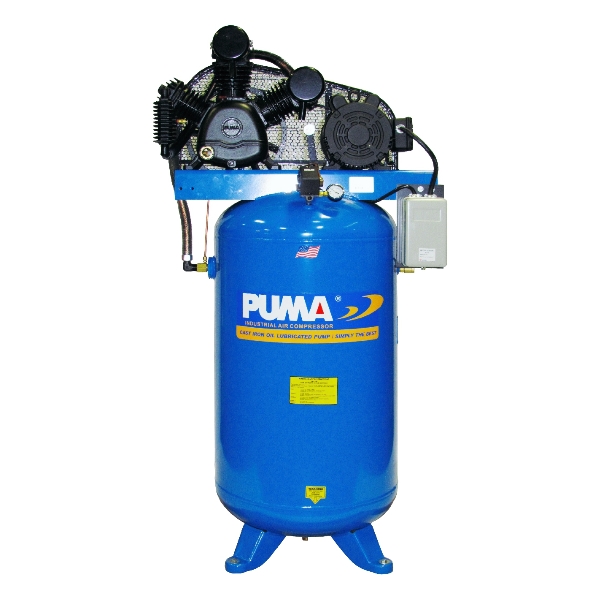

TUK-5080VM 5 1740 / 184 208-230 / Single / 23.5-21.5 950 175 18.3 17 80 Vertical ASME / CRN 560 Yes 1/2" 1/4" Option
TUK-5080VM3* 5 1750 / 184 208-230 or 460 / Three / 14-13.2 or 6.6 950 175 18.3 17 80 Vertical ASME / CRN 560 Yes 1/2" 1/4" Option

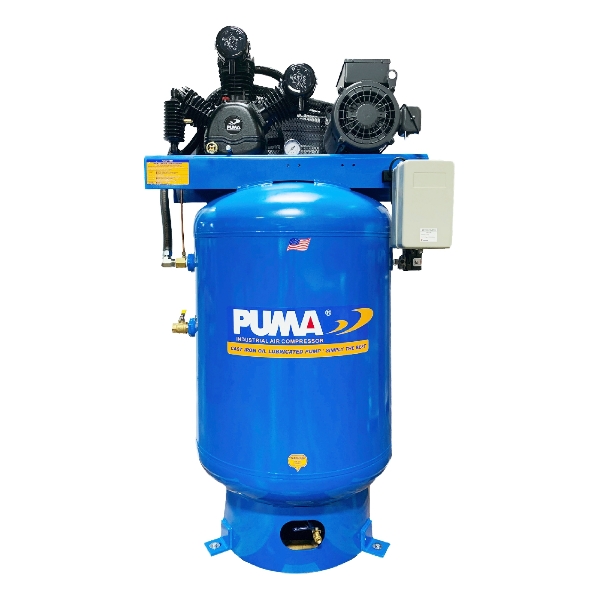

TUK-50120VM 5 1740 / 184 208-230 / Single / 23.5-21.5 950 175 18.3 17 120 Vertical ASME / CRN 815 Yes 1" 1/4" Option
TUK-50120VM3* 5 1750 / 184 208-230 or 460 / Three / 14-13.2 or 6.6 950 175 18.3 17 120 Vertical ASME / CRN 810 Yes 1" 1/4" Option

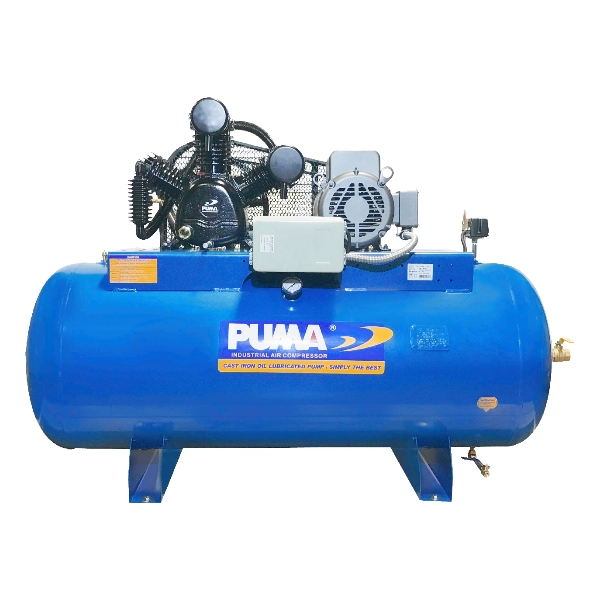

TUK-50120M 5 1740 / 184 208-230 / Single / 23.5-21.5 950 175 18.3 17 120 Horizontal ASME / CRN 755 Yes 1" 1/4" Option
TUK-50120M3* 5 1750 / 184 208-230 or 460 / Three / 14-13.2 or 6.6 950 175 18.3 17 120 Horizontal ASME / CRN 750 Yes 1" 1/4" Option

* Three phase motor, customers must specify voltage (208-230 or 460 V) when ordering.
