5/8" & 1/2" Air Drill

5/8" & 1/2" Air Drill
5/8" & 1/2" Air Drill
  • AT-4049
  • AT-4142(S)

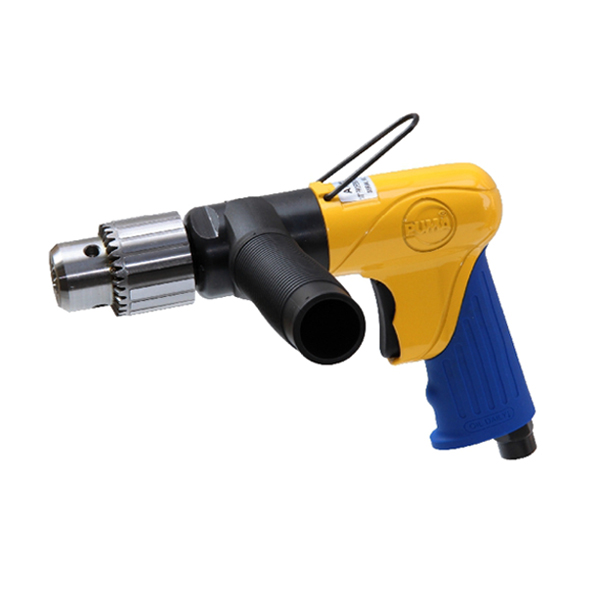

  • AT-4142R(S)
  • AT-4144(S)
  • AT-4145(S)
  • AT-4146(S)
  • AT-4147(S)
  • AT-4147R(S)
  • AT-4340
  • AT-4341R
  • AT-4342
  • AT-4343
  • AT-4344R
  • AT-4040(S)
  • AT-4041(S)
  • AT-4044(S)
  • AT-4140(S)
  • AT-4141(S)
  • AT-4242(S)
  • AT-4243(S)
  • AT-4244(S)
  • AT-4245(S)
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart

(at 90psi-6.2bar)

Model No.Chuck SizeFree
Speed
R.P.M.		SpindleOverall
Length		Air
Inlet
(PT)		Air
Hose
(ID)		Avg. Air
Consumption		Net WeightPacking
Pcs/Ctn/G.W./Cuft
(kg)		Sug.
Air
Comp.
(HP)
inchmminchmmscfml/minlbkg
AT-4049 5/8 16 1000 -- 16.14 410 3/8” 1/2” 19 538 13.7 6.22 4/Ctn/26 kg /1.5’ 5
AT-4142(S) 1/2 13 350 3/8”-24 9.13 232 1/4” 3/8” 10 283 3.90 1.77 10/Ctn/20kg/0.98’ 3
AT-4142R(S) 1/2 13 350 3/8”-24 9.13 232 1/4” 3/8” 10 283 3.88 1.76 10/Ctn/20kg/0.98’ 3
AT-4144(S) 1/2 13 600 3/8”-24 9.84 250 1/4” 3/8” 14 396 3.59 1.63 10/Ctn/18 kg /1’ 3
AT-4145(S) 1/2 13 500 3/8”-24 9.13 232 1/4” 3/8” 10 283 3.90 1.77 10/Ctn/20kg/0.98’ 3
AT-4146(S) 1/2 13 500 3/8”-24 9.13 232 1/4” 3/8” 10 283 3.88 1.76 10/Ctn/20kg/0.98’ 3
AT-4147(S) 1/2 13 800 3/8”-24 9.13 232 1/4” 3/8” 10 283 3.90 1.77 10/Ctn/20kg/0.98’ 3
AT-4147R(S) 1/2 13 800 3/8”-24 9.13 232 1/4” 3/8” 10 283 3.88 1.76 10/Ctn/20kg/0.98’ 3
AT-4340 1/2 13 700 1/2”-20 9.45 240 1/4” 3/8” 12 340 3.09 1.4 10/Ctn/16.5kg/0.98’ 3
AT-4341R 1/2 13 700 1/2”-20 9.92 252 1/4” 3/8” 12 340 3.09 1.4 10/Ctn/16.5kg/0.98’ 3
AT-4342 1/2 13 500 1/2”-20 9.45 240 1/4” 3/8” 12 340 3.09 1.4 10/Ctn/16.5kg/0.98’ 3
AT-4343 1/2 13 600 1/2”-20 10.16 258 1/4” 3/8” 13 368 3.31 1.5 10/Ctn/17.5kg/1.1’ 3
AT-4344R 1/2 13 500 1/2”-20 10.71 272 1/4” 3/8” 13 368 3.52 1.6 10/Ctn/18.5kg/1.1’ 3

Model No.Chuck SizeFree
Speed
R.P.M.		SpindleOverall
Length		Air
Inlet
(PT)		Air
Hose
(ID)		Avg. Air
Consumption		Net WeightPacking
Pcs/Ctn/G.W./Cuft
(kg)		Sug.
Air
Comp.
(HP)
inchmminchmmscfml/minlbkg
AT-4040(S) 1/2 13 800 3/8”-24 8.74 222 1/4” 3/8” 10 283 3.26 1.48 10/Ctn/19kg/1’ 3
AT-4041(S) 1/2 13 800 3/8”-24 8.98 228 1/4” 3/8” 12 340 3.37 1.53 10/Ctn/18.2kg/1.3’ 3
AT-4044(S) 1/2 13 800 3/8”-24 8.94 227 1/4” 3/8” 12 340 3.46 1.57 10/Ctn/18.7kg/1’ 3
AT-4140(S) 1/2 13 500 3/8”-24 8.86 225 1/4” 3/8” 10 283 3.96 1.8 10/Ctn/19kg/0.98’ 3
AT-4141(S) 1/2 13 500 3/8”-24 8.86 225 1/4” 3/8” 10 283 3.96 1.8 10/Ctn/19kg/0.98’ 3
AT-4242(S) 1/2 13 800 3/8”-24 9.65 245 1/4” 3/8” 8.5 240 3.09 1.4 10/Ctn/16kg/1’ 3
AT-4243(S) 1/2 13 800 3/8”-24 9.65 245 1/4” 3/8” 8.5 240 3.09 1.4 10/Ctn/16kg/1’ 3
AT-4244(S) 1/2 13 800 3/8”-24 8.27 210 1/4” 3/8” 10 283 3.09 1.4 10/Ctn/17kg/1’ 3
AT-4245(S) 1/2 13 800 3/8”-24 8.27 210 1/4” 3/8” 10 283 3.17 1.44 10/Ctn/17.5kg/1’ 3
