10 / 15 / 20 Two Stage Belt Drive Stationary Series

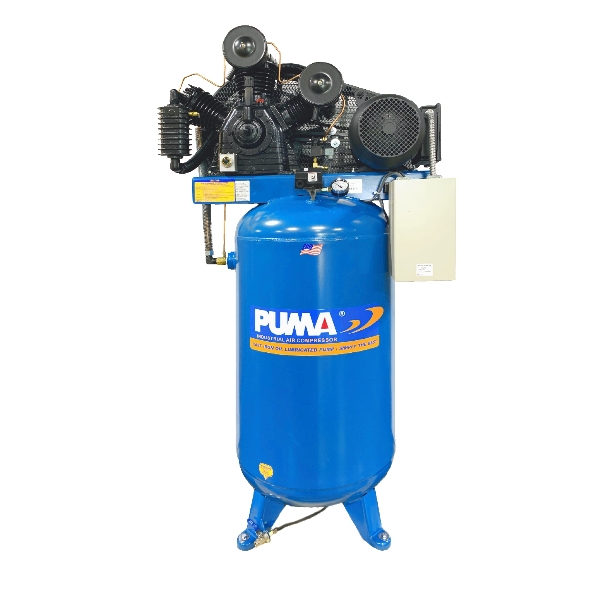

TUK-10080VM1 (TUK-10080VM3)

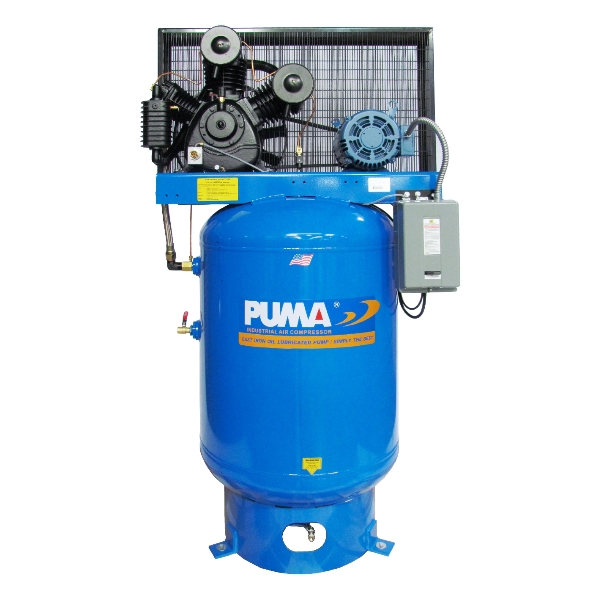

TUK-100120VM1 (TUK-100120VM3)

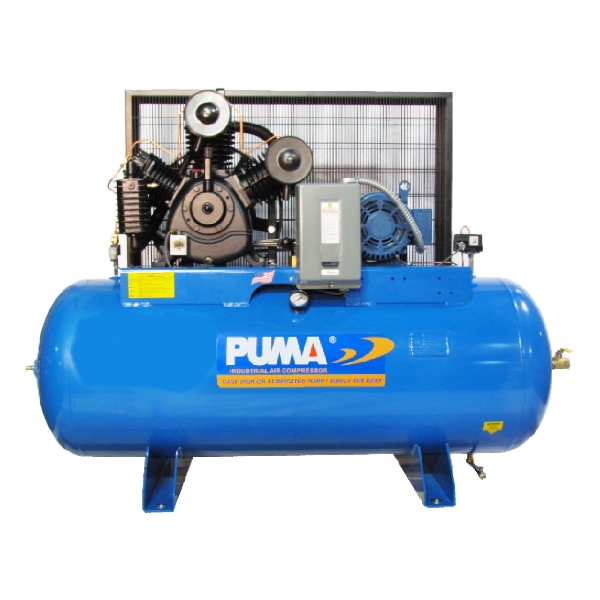

TUK-100120M1 (TUK-100120M3)

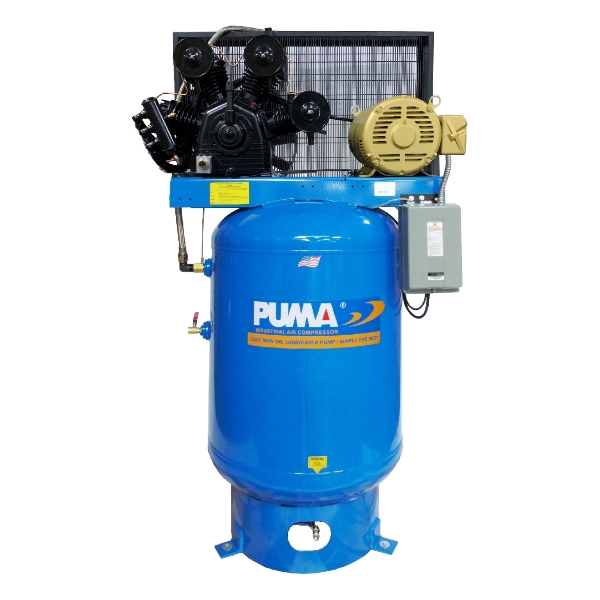

TUK-150120VM3

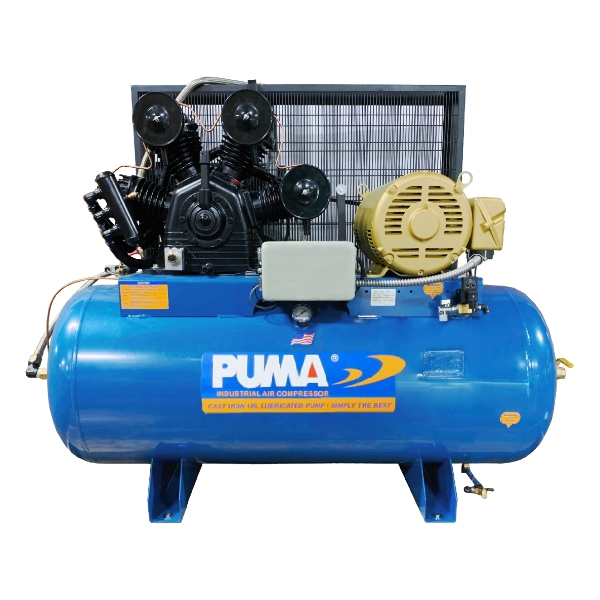

TUK-150120M3

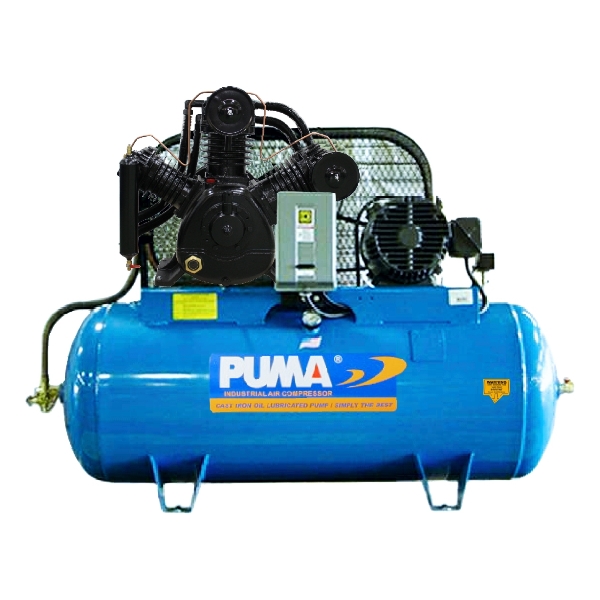

TUK-200120M3
10 / 15 / 20 Two Stage Belt Drive Stationary Series
  • TUK-10080VM1
  • TUK-10080VM3
  • TUK-100120VM1
  • TUK-100120VM3
  • TUK-100120M1
  • TUK-100120M3
  • TUK-150120VM3
  • TUK-150120M3
  • TUK-200120M3
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
ModelElectric MotorPump R.P.MMax.
Working PSI.		C.F.M.TankWeight
(lbs.)		Magnetic
Starter		Outlet Ball
Valve		Ext. Manual
Drain		Premium
Package
H.P.R.P.M. / FRAMEVolt./Phase/Amp.@ 90 PSI@ 175 PSIGal.StyleCode
TUK-10080VM1 10 1740 / 215 208-230 / Single / 44.8-39 800 175 33 32 80 Vertical ASME / CRN 740 Yes 1/2" 1/4" Option
TUK-10080VM3* 10 1740 / 215 208-230 or 460 / Three / 27-24.4 or 12.2 870 175 36.3 34.2 80 Vertical ASME / CRN 740 Yes 1/2" 1/4" Option
TUK-100120VM1 10 1740 / 215 208-230 / Single / 44.8-39 800 175 33 32 120 Vertical ASME / CRN 995 Yes 1" 1/4" Option
TUK-100120VM3* 10 1740 / 215 208-230 or 460 / Three / 27-24.4 or 12.2 870 175 36.3 34.2 120 Vertical ASME / CRN 995 Yes 1" 1/4" Option
TUK-100120M1 10 1740 / 215 208-230 / Single / 44.8-39 800 175 33 32 120 Horizontal ASME / CRN 1020 Yes 1" 1/4" Option
TUK-100120M3* 10 1740 / 215 208-230 or 460 / Three / 27-24.4 or 12.2 870 175 36.3 34.2 120 Horizontal ASME / CRN 1020 Yes 1" 1/4" Option
TUK-150120VM3* 15 1740 / 254 208-230 or 460 / Three / 39-35.4 or 17.7 870 175 50 48 120 Vertical ASME / CRN 1080 Yes 1" 1/4" Option
TUK-150120M3* 15 1740 / 254 208-230 or 460 / Three / 39-35.4 or 17.7 870 175 50 48 120 Horizontal ASME / CRN 1100 Yes 1" 1/4" Option
TUK-200120M3* 20 1740 / 256 208-230 or 460 / Three / 54 or 27 935 175 75 64 120 Horizontal ASME / CRN 1180 Yes 1" 1/4" Option

* Three phase motor, customers must specify voltage (208-230 or 460 V) when ordering.
