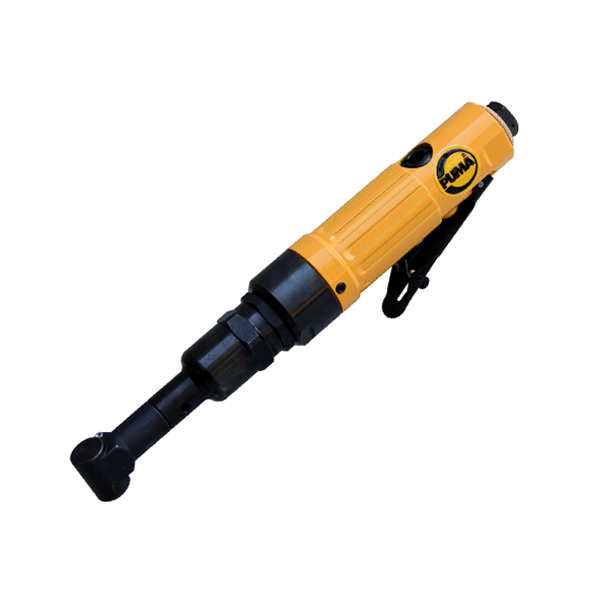

1/4" Angle Head Drill

1/4" Angle Head Drill
1/4" Angle Head Drill
  • AT-4520A
  • AT-4520B
  • AT-4520C
  • AT-4521A
  • AT-4521B
  • At-4521C
  • AT-4522A
  • AT-4522B
  • AT-4522C
  • AT-4523A
  • AT-4523B
  • AT-4523C
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart

(at 90psi-6.2bar)

Model No.Free
Speed
R.P.M.		Threaded
Drill Bits		PowerOverall
Length		Air
Inlet (PT)		Air
Hose (ID)		Avg. Air
Consumption		Net WeightPacking
Pcs/Ctn/G.W./Cuft
(kg)		Sug. Air
Comp.
(HP)
hpWinchmmscfml/minlbkg
AT-4520A 4500 1/4”-28 0.3 225 10.24 260 1/4” 3/8” 8 226 1.81 0.82 20/Ctn/18.2Kg/0.8’ 2
AT-4520B 4500 1/4”-28 0.3 225 10.71 272 1/4” 3/8” 8 226 1.81 0.82 20/Ctn/18.2Kg/0.8’ 2
AT-4520C 4500 1/4”-28 0.3 225 10.55 268 1/4” 3/8” 8 226 2.03 0.92 20/Ctn/21.8Kg/1.3’ 2
AT-4521A 3200 1/4”-28 0.3 225 10.24 260 1/4” 3/8” 8 226 1.81 0.82 20/Ctn/18.2Kg/0.8’ 2
AT-4521B 3200 1/4”-28 0.3 225 10.71 272 1/4” 3/8” 8 226 1.81 0.82 20/Ctn/18.2Kg/0.8’ 2
AT-4521C 3200 1/4”-28 0.3 225 10.55 268 1/4” 3/8” 8 226 2.03 0.92 20/Ctn/21.8Kg/1.3’ 2
AT-4522A 4200 1/4”-28 0.45 335 10.71 272 1/4” 3/8” 9 255 1.92 0.87 20/Ctn/19.2Kg/0.8’ 2
AT-4522B 4200 1/4”-28 0.45 335 11.18 284 1/4” 3/8” 9 255 1.92 0.87 20/Ctn/20.6Kg/1.3’ 2
AT-4522C 4200 1/4”-28 0.45 335 11 280 1/4” 3/8” 9 255 2.14 0.97 20/Ctn/22.8Kg/1.3’ 2
AT-4523A 2800 1/4”-28 0.45 335 10.71 272 1/4” 3/8” 9 255 1.92 0.87 20/Ctn/19.2Kg/0.8’ 2
AT-4523B 2800 1/4”-28 0.45 335 11.18 284 1/4” 3/8” 9 255 1.92 0.87 20/Ctn/20.6Kg/1.3’ 2
AT-4523C 2800 1/4”-28 0.45 335 11 280 1/4” 3/8” 9 255 2.14 0.97 20/Ctn/22.8Kg/1.3’ 2
